Description

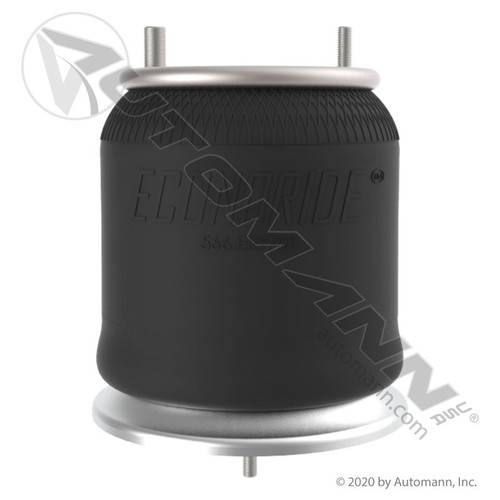

Rear Air Bag for Freightliner Airliner II Suspensions- Replaces W01-358-9781 / 9780
- Econoride
- Aluminum Base
- With 2.25inch Long Bottom Stud
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DF23 |
| Firestone Bellows# | 1T15ZR-6 |
| Goodyear Bellows# | 566-24-3-275, 566-24-3-108 |
| Contitech Bellows# | 9 10S-16 |
| Triangle Bellows# | 6363 |
| Load (Lbs) @80 PSI | 6100 |
| Load (Lbs) @100 PSI | 7700 |
| Natural Freq. (CPM) | 76 |
| Design Height (In) | 12.5 |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.63 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS10947 |
| Bumper | No |
| Bracket | N/A |
| Min. Height | 8.6 |
| Max. Height | 23 |
| Max. Dia. | 12.6 |
Direct Replacement for
| Name | Part Number |
|---|---|
| Contitech | 64266 |
| Firestone | 9781 |
| Firestone | W01-358-9781 |
| Firestone | W01-377-8536 |
| Hendrickson | 8536 |
Also will replace the following Plastic Base Numbers
Cross Reference
| Name | Part Number |
|---|---|
| Contitech | 67473 |
| Contitech | 9 10S-16 P 382 |
| Firestone | 8537 |
| Firestone | 9758 |
| Firestone | 9780 |
| Firestone | 9784 |
| Firestone | 9786 |
| Firestone | VM1-9780 |
| Firestone | W01-358-9780 |
| Firestone | W01-377-8528 |
| Firestone | W01-377-8530 |
| Firestone | W01-377-8536 |
| Firestone | W01-377-8537 |
| Firestone | W01-377-9758 |
| Firestone | W01-377-9784 |
| Firestone | W01-377-9785 |
| Firestone | W01-377-9786 |
| Firestone | W01-377-9787 |
| Firestone | W01-377-9789 |
| Freightliner | 16-13810-000 |
| Freightliner | 16-13810-001 |
| Freightliner | 16-13810-002 |
| Freightliner | 16-14366-000 |
| Freightliner | 16-14377-000 |
| Freightliner | 16-15595-000 |
| Freightliner | 16-16528-000 |
| Freightliner | 16-16529-000 |
| Freightliner | 16-16773-000 |
| Freightliner | 16-16825-000 |
| Freightliner | 16-19468-000 |
| Freightliner | 681-320-0017 |
| Freightliner | A16-13668-001 |
| Freightliner | A16-15443-000 |
| Freightliner | A16-20111-000 |
| Freightliner | A-680-320-00-17 |
| Goodyear | 1R12-1072 |
| Goodyear | 1R12-186 |
| Goodyear | 1R12-303 |
| Neway | G2299780200 |
| Sterling | AC455580CA |
| Sterling | XC455580BA |
| Thomasbilt | 61310437 |
| Volvo/White | 3946472 |
| Watson&Chalin | AS01471G |
Please Note, Warranty is void if the bag blows out and the Height control valve was not replaced as well or if the bag is overloaded.
