Description

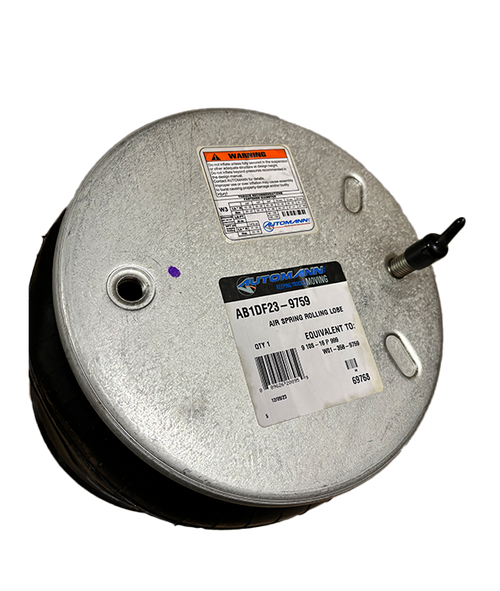

Air Bag for Freightliner Late Model Airliner II Suspensions- Replaces A16-18335-000 / W01-377-9759
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DF23 |
| Firestone Bellows# | 1T15ZR-6 |
| Contitech Bellows# | 9 10S-16 |
| Triangle Bellows# | 6363 |
| Natural Freq. (CPM) | 79 |
| Design Height (In) | 12.50 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.63 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS12314 |
| Bumper | No |
| Bracket | N/A |
| Min. Height | 8.60 |
| Max. Height | 23.00 |
| Max. Dia. | 12.60 |
Cross Reference
| Name | Part Number |
|---|---|
| Contitech | 68208 |
| Contitech | 9 10S-16 P 224 |
| Contitech | 9 10S-16 P 999 |
| Contitech | 910S16P224 |
| Contitech | 910S-16P224 |
| Firestone | 9735 |
| Firestone | 9759 |
| Firestone | W013589759 |
| Firestone | W013779735 |
| Firestone | W01-377-9735 |
| Firestone | W013779759 |
| Firestone | W01-377-9759 |
| Freightliner | 1619769000 |
| Freightliner | 16-19769-000 |
| Freightliner | A1618335000 |
| Freightliner | A16-18335-000 |
| Freightliner | A1618335001 |
| Freightliner | A16-18335-001 |
| Freightliner | A1620111000 |
| Freightliner | A16-20111-000 |
