Description
- Plastic Base
Product Overview

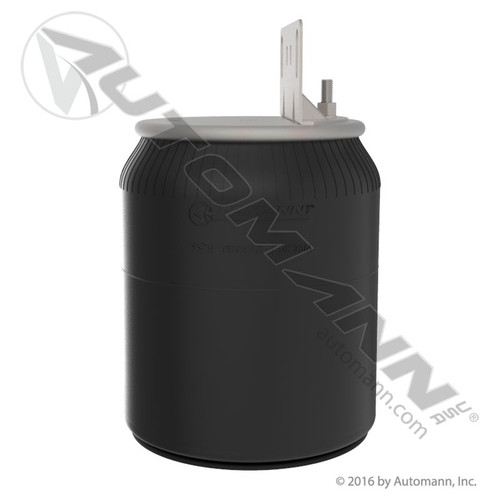

Automann's premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
Specific Features & Benefits
- Quality raw material and manufacturer expertise to guarantee performance
- Plastic Base allows for optimized weight and cost savings
- Features OEM dimensioning and up assembly mounting bracket for hassle-free installation
- Resistant to oil; lubricants; and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting
| Applications | Ford Hendrickson |
| Type | Rolling Lobe |
| Airspring Brand | Automann Phoenix |
| Automann Bellows # | 1DK23M |
| Firestone Bellows# | 1T15M-8 |
| Goodyear Bellows# | 566-24-3-097, 566-24-1-030 |
| Contitech Bellows# | 9 10-18.5 |
| Triangle Bellows # | 6391 |
| Load (Lbs) @80 PSI | 5900 |
| Load (Lbs) @100 PSI | 7500 |
| Natural Freq. (CPM) | 57 |
| Design Height (In) | 12.50 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.00 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS13520 |
| Bumper | Yes |
| Bracket | AB9372P or AB9373P |
| Min. Height | 7.60 |
| Max. Height | 23.10 |
| Max. Dia. | 12.60 |
Cross References
| Contitech | 161006 |
| Contitech | 161087 |
| Contitech | 64265 |
| Contitech | 64336 |
| Contitech | 9 10-18.5 P 440 |
| Contitech | 9 10-18.5 P 519 |
| Firestone | 9373 |
| Firestone | W01-358-9373 |
| Firestone | W01-455-9373 |
| Ford | 4C4O5580CA |
| Ford | 4C4Z5580CA |
| Goodyear | 1R12-403 |
| Goodyear | 1S12-030 |
| Hendrickson | 51722001 |
| Hendrickson | 51722002 |
| Hendrickson | 571220001 |
| Hendrickson | 571220002 |
| Hendrickson | 57122-001 |
| Hendrickson | 57122-002 |
| Hendrickson | 57122-002L |
| Hendrickson | 57122-1 |
| Hendrickson | 57122-2 |
| IHC | 1R12-1056 |
| IHC | 2036090C1 |
| IHC | 2992101C1 |
| Watson&Chalin | AS-0127-G |
| Watson&Chalin | AS-0141 |
