Description
Product Overview
Continental's premiere air spring boasts the ability to maintain ride height and to maximize service life. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to offer a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving™
Specific Features & Benefits
- High quality raw material and manufacturer expertise to guarantee long-lasting performance
- Aluminum Base allows for increased strength and durability
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil; lubricants; and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting
| Applications | SAF Holland/Neway |
| Type | Rolling Lobe |
| Airspring Brand | Continental |
| Automann Bellows # | 1DK23P |
| Firestone Bellows# | 1T15M-7.5 |
| Goodyear Bellows# | 566-24-3-097 |
| Contitech Bellows# | 9 10-17.5 |
| Triangle Bellows # | 6391 |
| Load (Lbs) @80 PSI | 5600 |
| Load (Lbs) @100 PSI | 7100 |
| Natural Freq. (CPM) | 64 |
| Design Height (In) | 14 |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Qty | 2 |

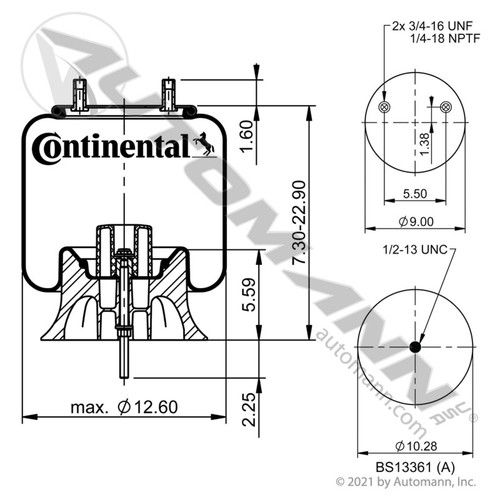

| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.28 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS13361 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 7.30 |
| Max. Height | 22.90 |
| Max. Dia. | 12.60 |
Cross References
| Contitech | 67586 |
| Contitech | 9 10-17.5 A 930 |
| Firestone | W01-358-9974 |
| Goodyear | 1R121048 |
| Goodyear | 1R12-1048 |
| Neway | 90557332 |
| Neway | 905-57-332 |
