Product Description
Bendix® AD-9® Air Dryer
This is a genuine Bendix re-manufactured Coalescing Air Dryer assembly.
CORE RETURN IS REQUIRED
More desiccant means it works longer than knock-offs.
Remanufactured replacement for 065225PG
Service New No. Reman Exch. No. Purge Volume Purge Valve Port Size (NPT) Heater Notes
065225PG 109685PGX / R109685PG Standard Hard 1/2" 12V / 75W
Air Dryer Type
Stand-Alone
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)

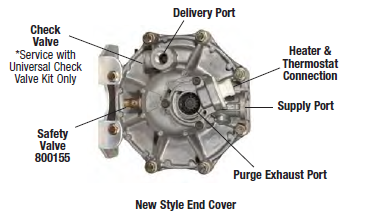

Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Delivery Port 1
1/2-14 NPT
Purge Exhaust Port
Open
Purge Valve Type
Hard Seat
Purge Volume
Standard
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
12V / 75W
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Heater Connector Color
White
Cartridge Type
Coalescing
Cartridge Thread
5/8-11 UNC-2A
Cartridge Stabilizer Ring Included
No
Clearance to Remove Cartridge
11.00 IN
Governor Included
No
Minimum Operating Temperature
-40 °F (-40 °C)
We are a Bendix Platinum Level Distributor for over 20 years!
