Description

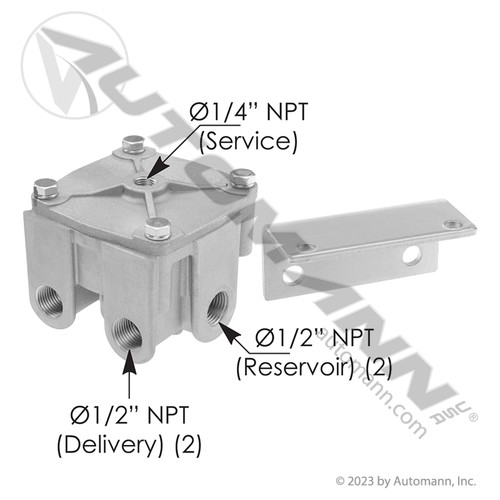

Bendix® R-12 ® Relay Valve
1/2" Supply Ports
1/2" Delivery Ports
5.5psi Crack Pressure
Mounting
.96 IN x .40 IN Slot (4x)
Mounting Bracket Location
Loose in Box
Body Configuration
2 SUP / 2 DEL (H)
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Exhaust Port
Dust Shield
Crack Pressure
5.5 PSI
TMC Washer
RV055
Maximum Operating Temperature
200 °F (93 °C)
Minimum Operating Temperature
-40 °F (-40 °C)
