Product Description

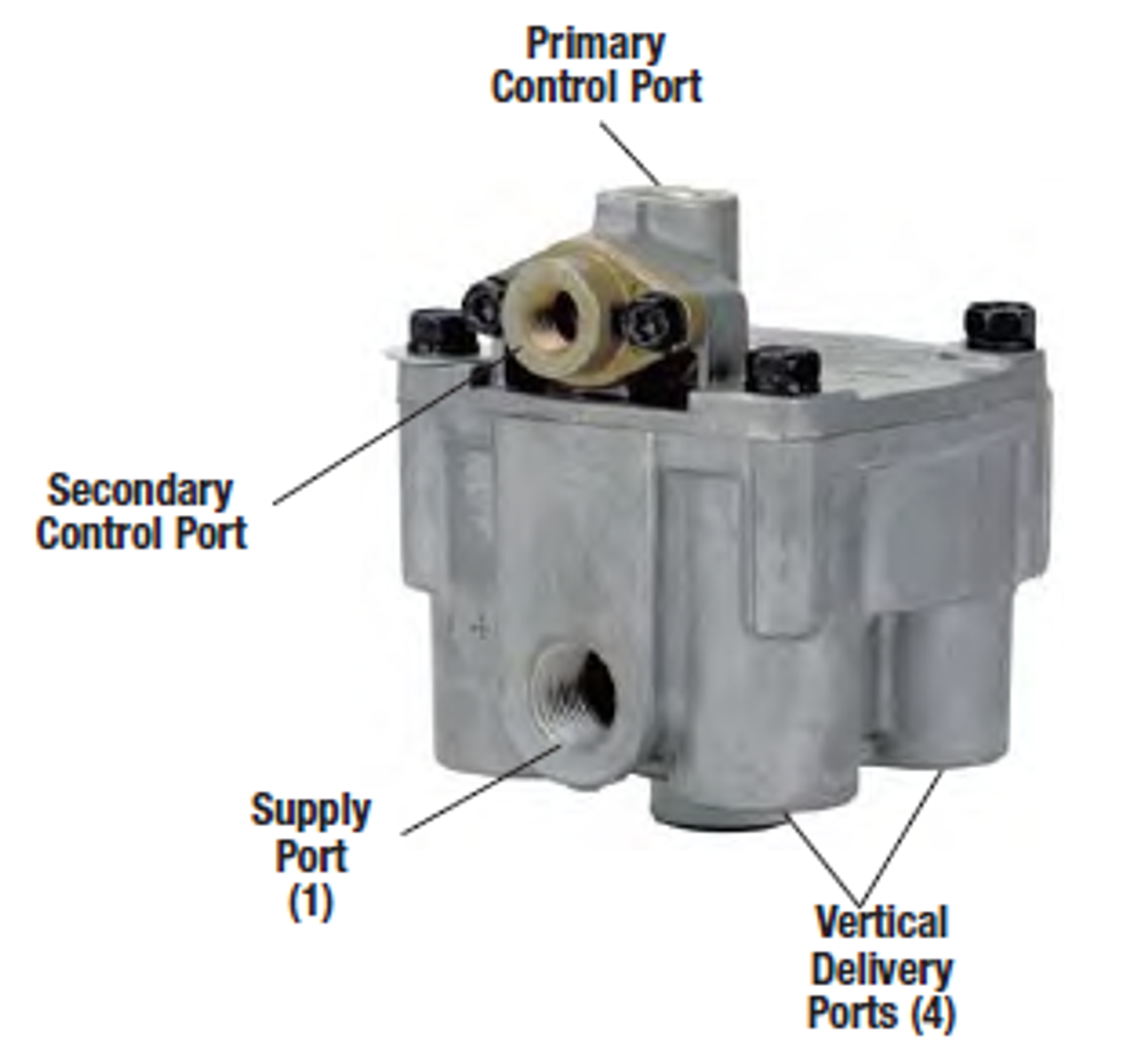

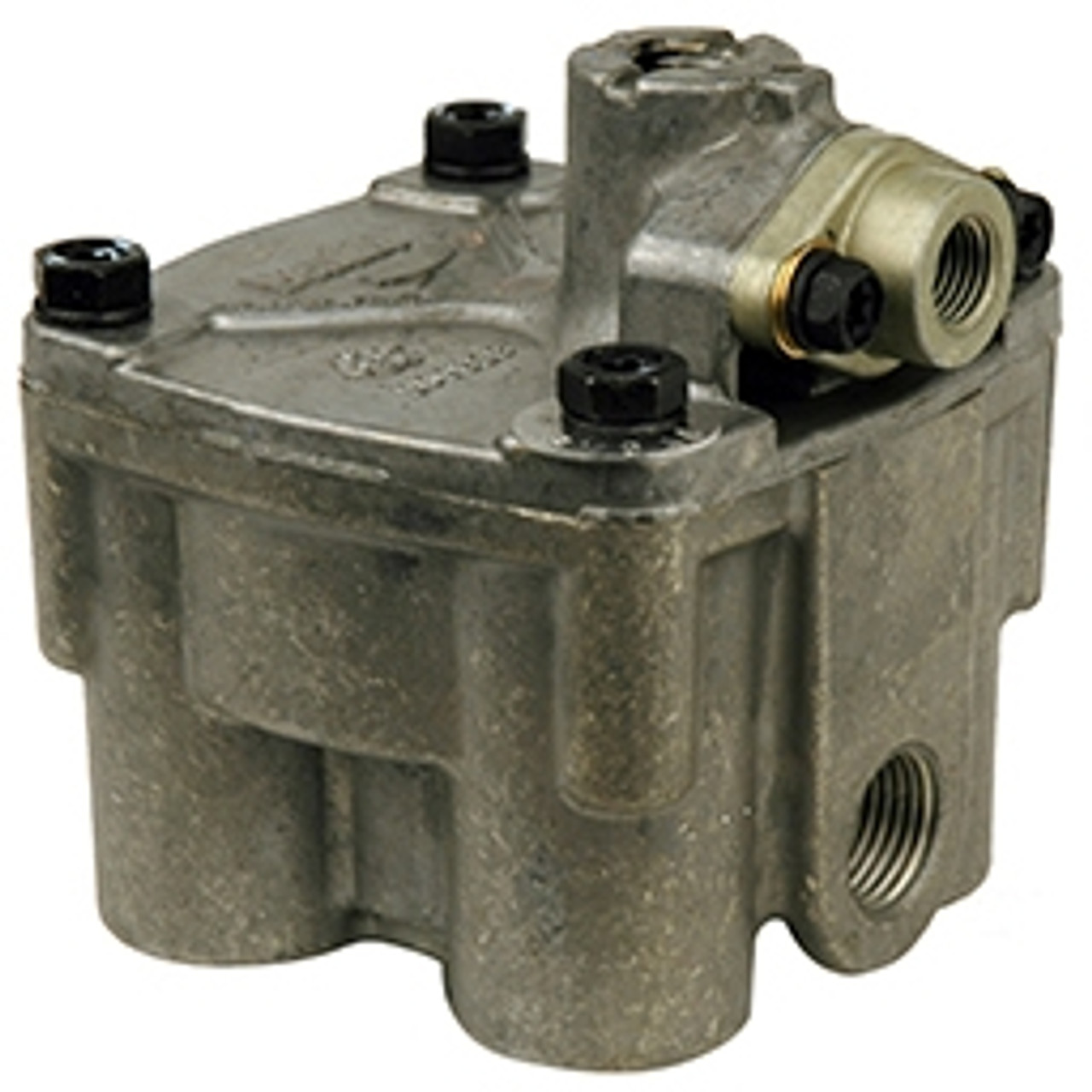

Bendix® R-12DC® Relay Valve with Four (4) 1/2" Vertical Delivery Ports
Mounting
5/16-18 UNC-2A Stud (2x)
Mounting Bracket Location
Loose in Box
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Control Port Orientation (CW from Front Face)
0°
Balance / Primary Service Port
1/4-18 NPT
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Exhaust Port
Dust Shield
Crack Pressure
4.0 PSI
TMC Washer
RV040
Maximum Operating Temperature
200 °F (93 °C)
Minimum Operating Temperature
-40 °F (-40 °C)
