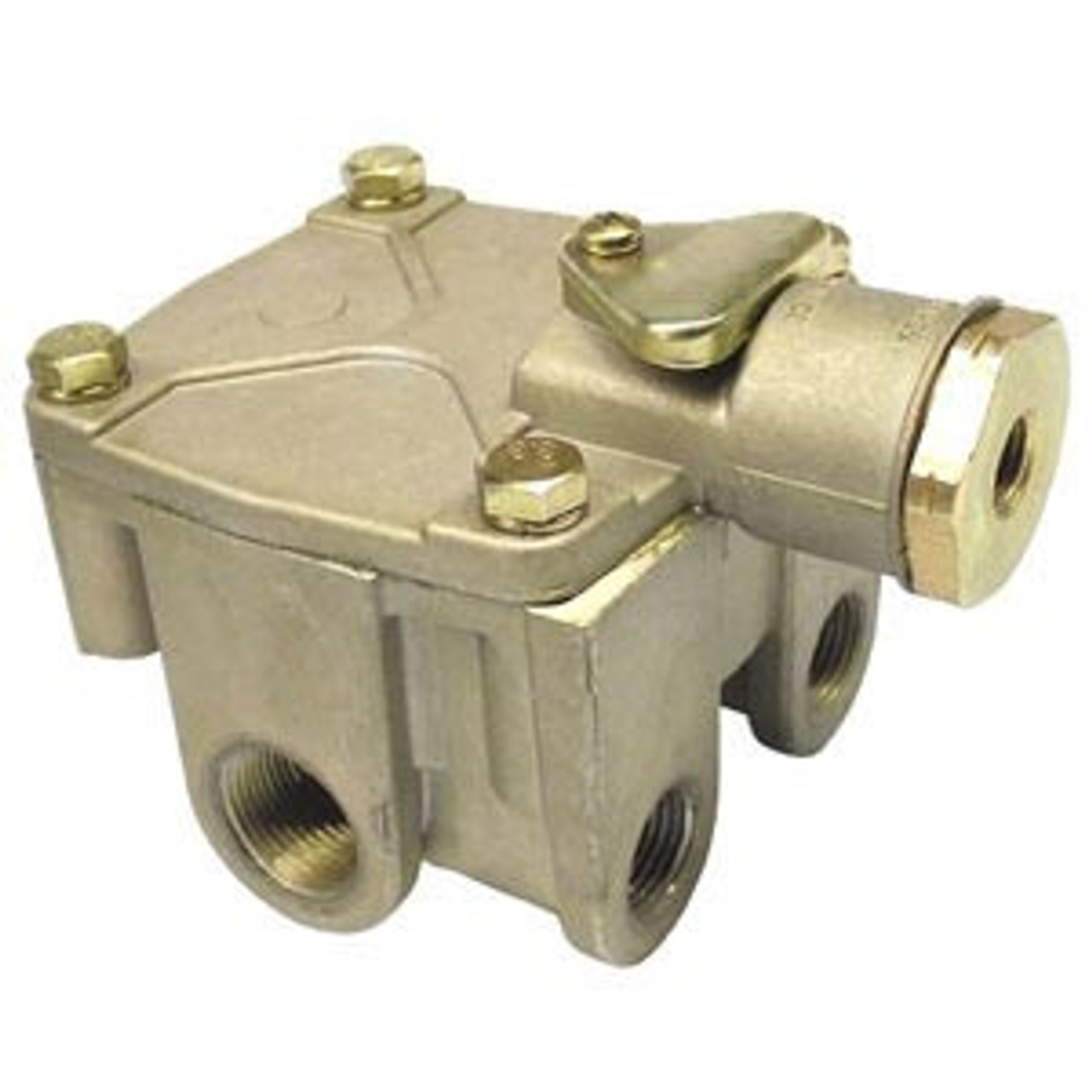

Product Description
Inlet Port 1/2", (2) 1/2" Delivery Ports & (2) 3/8" Delivery Ports, Horizontal & Vertical Delivery Ports
Mounting
Ø .472 IN (2x), Ø .550 IN (3x)

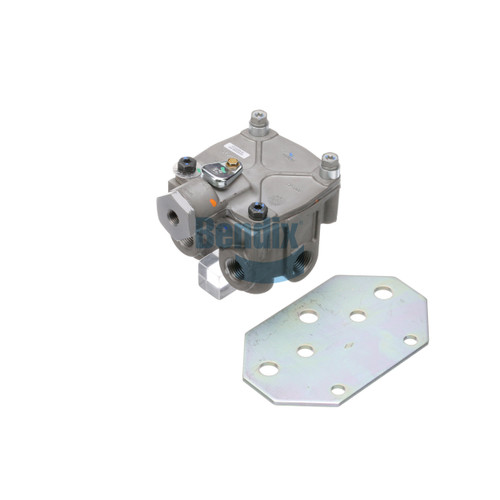

Mounting Bracket Location
Loose in Box
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Control Port Orientation (CW from Front Face)
0°
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Exhaust Port
Dust Shield
Crack Pressure
4.0 PSI
TMC Washer
RV040
Maximum Operating Temperature
200 °F (93 °C)
Minimum Operating Temperature
-40 °F (-40 °C)
