Product Description

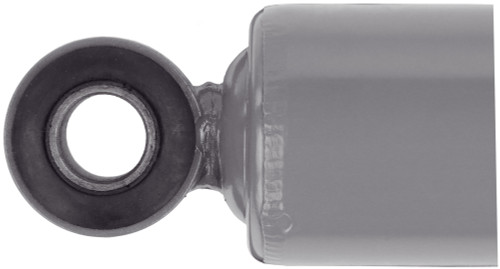

Cargomaxx HD Shock Absorber- Drive Axle- GM- replaces 65416 / 85000
When it’s time to replace shocks, don’t trust anything other than premium replacement components. Ask for CARGOMAXX HD™ shock absorbers. Road-proven in the most extreme conditions, CARGOMAXX HD™ shocks are engineered to meet or exceed OE specifications while offering the ideal solution to withstand the repetitive cycling every truck’s suspension system must endure. Dynamic damping offers best-in-class handling and control, no matter the environment or road conditions. Count on CARGOMAXX HD™ shocks for a smooth ride and maximum cargo protection.

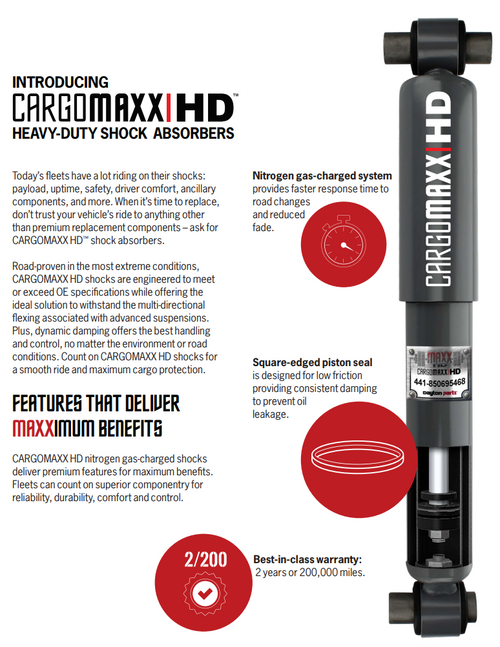

FEATURES:
• Best-in-class warranty - (2Y/200k)
• Square-edged piston seal - designed for low friction, consistent damping, and to help prevent oil leakage
• Nitrogen gas-charged - provides faster response time to changing road conditions
• Chrome-plated piston rods - resists corrosion and helps prolong seal life
• Double-lip rod seals - an extra layer of protection against leaks and misting
• Superior rings - 360° robotic welds and seamless rings mean CARGOMAXX HD™ shocks hang tough for longer
• Electrostatic paint - applied almost twice as thick as the nearest competitor
• Synthetic oil - resists cavitation and is more resistant to temperature fluctuations than cheaper conventional-fill shocks
Dayton_no | Top Mount Size | Bottom Mount Size | Extended Length | Compressed Length | Stroke | Charge | Style |
441-850005416 | 3/4" x 1 3/4" | 3/4" x 1 3/4" | 17.76 | 12.05 | 5.71 | Gas | Eye with Sleeve/Eye with Sleeve (ES/ES) |
Applications
GMC | T6500 | 1997-2002 | Rear | 16,900lb Drive Axle; Taper Leaf Spring; OE Interchange 22064489; 1.75" Bore |
GMC | T7500 | 1997-2002 | Rear | 16,900lb Drive Axle; Taper Leaf Spring; OE Interchange 22064489; 1.75" Bore |
*All application data is supplied by the manufacturer. It may not cover all options for a specific make / model listed. Always check OEM numbers prior to ordering.
