Description
Cargomaxx HD Shock Absorber- Drive Axle- GM / Thomas / International- replaces 65108 / 85030

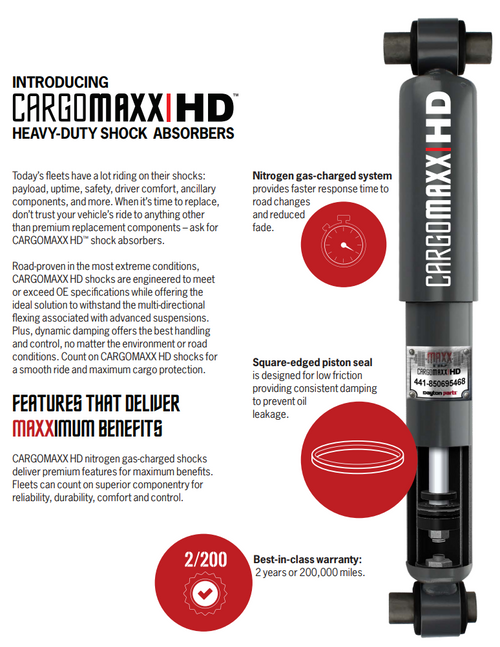

When it’s time to replace shocks, don’t trust anything other than premium replacement components. Ask for CARGOMAXX HD™ shock absorbers. Road-proven in the most extreme conditions, CARGOMAXX HD™ shocks are engineered to meet or exceed OE specifications while offering the ideal solution to withstand the repetitive cycling every truck’s suspension system must endure. Dynamic damping offers best-in-class handling and control, no matter the environment or road conditions. Count on CARGOMAXX HD™ shocks for a smooth ride and maximum cargo protection.
FEATURES:
• Best-in-class warranty - (2Y/200k)
• Square-edged piston seal - designed for low friction, consistent damping, and to help prevent oil leakage
• Nitrogen gas-charged - provides faster response time to changing road conditions
• Chrome-plated piston rods - resists corrosion and helps prolong seal life
• Double-lip rod seals - an extra layer of protection against leaks and misting
• Superior rings - 360° robotic welds and seamless rings mean CARGOMAXX HD™ shocks hang tough for longer
• Electrostatic paint - applied almost twice as thick as the nearest competitor
• Synthetic oil - resists cavitation and is more resistant to temperature fluctuations than cheaper conventional-fill shocks

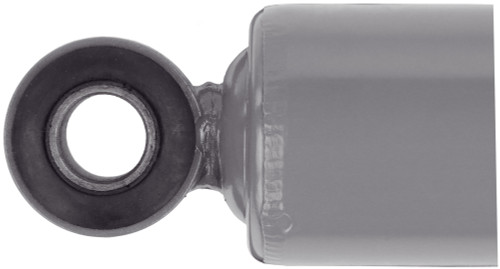

| Dayton_no | Top Mount Size | Bottom Mount Size | Extended Length | Compressed Length | Stroke | Charge | Style |
| 441-85030 | 3/4" x 1 3/4" | 3/4" x 1 3/4" | 23.31 | 14.61 | 8.7 | Gas | Eye with Sleeve/Eye with Sleeve (ES/ES) |
Applications
| GMC | C7000 | 1990 | Rear | 1677707C1 | 2015557C1 | 22064432 | Conventional Cab; 15,000 to 21,000lb Axle; Leaf Spring Suspension; 1.75" Bore |
| International | 3900FC | 1991-1994 | Front | 1677707C1 | 2015557C1 | 22064432 | 1.75" Bore |
| Thomas | Saf-T-Liner | 2003-2007 | Rear | 1677707C1 | 2015557C1 | 22064432 | 1.75" Bore |
| GMC | C5000 | 1990 | Rear | 1677707C1 | 2015557C1 | 22064432 | Conventional Cab; 15,000 to 21,000lb Axle; Leaf Spring Suspension; 1.75" Bore |
| GMC | C5000 Topkick | 1990-1991 | Rear | 1677707C1 | 2015557C1 | 22064432 | Conventional Cab; 15,000 to 21,000lb Axle; Leaf Spring Suspension; 1.75" Bore |
| GMC | C6000 Topkick | 1990-1996 | Rear | 1677707C1 | 2015557C1 | 22064432 | Conventional Cab; 15,000 to 21,000lb Axle; Leaf Spring Suspension; 1.75" Bore |
| GMC | C7500 Topkick | 1990-1996 | Rear | 1677707C1 | 2015557C1 | 22064432 | Conventional Cab; 15,000 to 21,000lb Axle; Leaf Spring Suspension; 1.75" Bore |
*All application data is supplied by the manufacturer. It may not cover all options for a specific make / model listed. Always check OEM numbers prior to ordering.
Warranty Information
