Description

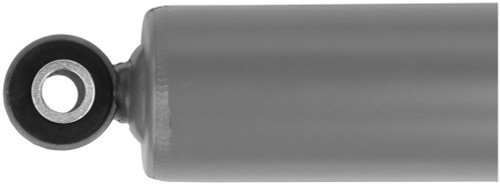

Cargomaxx HD Shock Absorber- Drive Axle- Mack / Volvo- replaces 65486 / 85066

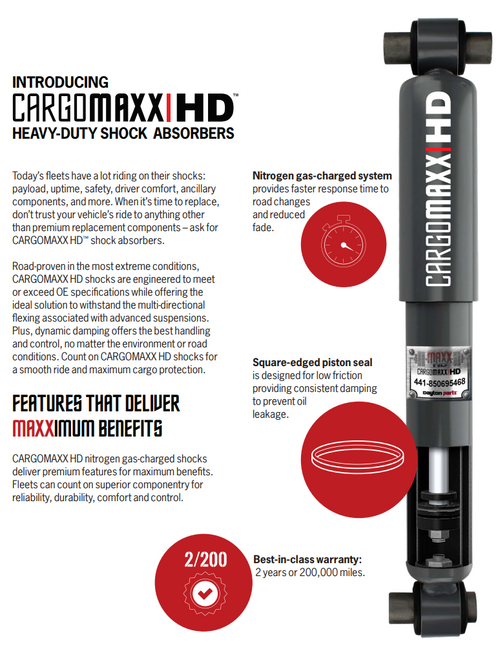

When it’s time to replace shocks, don’t trust anything other than premium replacement components. Ask for CARGOMAXX HD™ shock absorbers. Road-proven in the most extreme conditions, CARGOMAXX HD™ shocks are engineered to meet or exceed OE specifications while offering the ideal solution to withstand the repetitive cycling every truck’s suspension system must endure. Dynamic damping offers best-in-class handling and control, no matter the environment or road conditions. Count on CARGOMAXX HD™ shocks for a smooth ride and maximum cargo protection.
FEATURES:
• Best-in-class warranty - (2Y/200k)
• Square-edged piston seal - designed for low friction, consistent damping, and to help prevent oil leakage
• Nitrogen gas-charged - provides faster response time to changing road conditions
• Chrome-plated piston rods - resists corrosion and helps prolong seal life
• Double-lip rod seals - an extra layer of protection against leaks and misting
• Superior rings - 360° robotic welds and seamless rings mean CARGOMAXX HD™ shocks hang tough for longer
• Electrostatic paint - applied almost twice as thick as the nearest competitor
• Synthetic oil - resists cavitation and is more resistant to temperature fluctuations than cheaper conventional-fill shocks
Product Specs
| Dayton_no | Top Mount Size | Bottom Mount Size | Extended Length | Compressed Length | Stroke | Charge | Style |
| 441-85066 | 5/8" x 4" | 5/8" x 2 9/16" | 24.96 | 15.63 | 9.33 | Gas | Eye with Sleeve/Eye with Sleeve (ES/ES) |
Applications
| Mack | Anthem | 2018-2020 | Rear | 14QK2136M | 14QK3101M | 20433425 | 40,000lb Air Suspension; 1.75" Bore |
| Mack | CHN | 2004-2007 | Rear | 14QK2136M | 14QK3101M | 20433425 | |
| Mack | CHU | 2011-2019 | Rear | 14QK2136M | 14QK3101M | 20433425 | 40,000lb Air Suspension; 1.75" Bore |
| Mack | CXN | 2004-2007 | Rear | 14QK2136M | 14QK3101M | 20433425 | Mack Corporate Air Suspension, 1.75" Bore |
| Mack | CXP | 2006-2007 | Rear | 14QK2136M | 14QK3101M | 20433425 | 40,000lb Air Suspension; 1.75" Bore |
| Mack | CXU | 2008-2019 | Rear | 14QK2136M | 14QK3101M | 20433425 | 40,000lb Air Suspension; 1.75" Bore |
| Volvo | VN | 1998-1999, 2004 | Rear | 14QK2136M | 14QK3101M | 20433425 | 1.75" Bore |
| Volvo | VNL | 2000-2020 | Rear | 14QK2136M | 14QK3101M | 20433425 | 40,000lb Air Suspension; 1.75" Bore |
| Volvo | VNM | 2000-2018 | Rear | 14QK2136M | 14QK3101M | 20433425 | 38,000lb Air Suspension; 1.75" Bore |
| Volvo | VNR | 2018-2020 | Rear | 14QK2136M | 14QK3101M | 20433425 | 38,000lb Air Suspension; 1.75" Bore |
*All application data is supplied by the manufacturer. It may not cover all options for a specific make / model listed. Always check OEM numbers prior to ordering.
Warranty Information
