Description

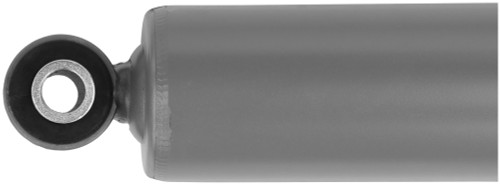

Cargomaxx HD Shock Absorber- Drive Axle- PACCAR / Mack / Volvo- replaces 65504 / 85072
When it’s time to replace shocks, don’t trust anything other than premium replacement components. Ask for CARGOMAXX HD™ shock absorbers. Road-proven in the most extreme conditions, CARGOMAXX HD™ shocks are engineered to meet or exceed OE specifications while offering the ideal solution to withstand the repetitive cycling every truck’s suspension system must endure. Dynamic damping offers best-in-class handling and control, no matter the environment or road conditions. Count on CARGOMAXX HD™ shocks for a smooth ride and maximum cargo protection.

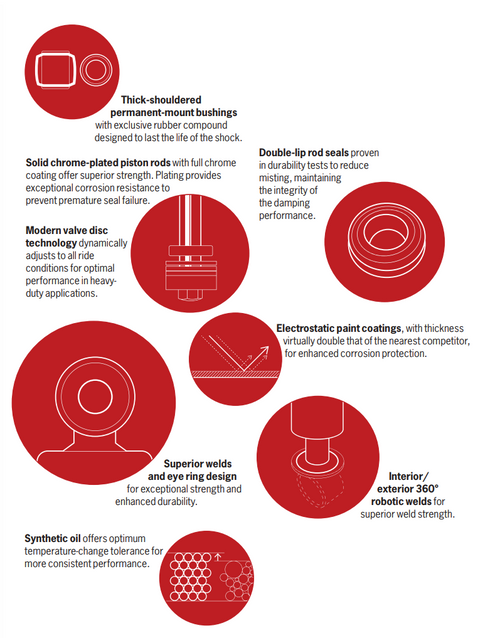

FEATURES:
• Best-in-class warranty - (2Y/200k)
• Square-edged piston seal - designed for low friction, consistent damping, and to help prevent oil leakage
• Nitrogen gas-charged - provides faster response time to changing road conditions
• Chrome-plated piston rods - resists corrosion and helps prolong seal life
• Double-lip rod seals - an extra layer of protection against leaks and misting
• Superior rings - 360° robotic welds and seamless rings mean CARGOMAXX HD™ shocks hang tough for longer
• Electrostatic paint - applied almost twice as thick as the nearest competitor
• Synthetic oil - resists cavitation and is more resistant to temperature fluctuations than cheaper conventional-fill shocks
Product Specs
| Dayton_no | Top Mount Size | Bottom Mount Size | Extended Length | Compressed Length | Stroke | Charge | Style |
| 441-85072 | 3/4" x 1 3/4" | 5/8" x 3 9/16" | 24.21 | 15.12 | 9.09 | Gas | Eye with Sleeve/Eye with Sleeve (ES/ES) |
Applications
| International | HV507 | 2019-2020 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson Primaax 230 or 460 Suspension; 1.75" Bore |
| International | HV513 | 2019-2020 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson Primaax 230 or 460 Suspension; 1.75" Bore |
| International | HV607 | 2019-2020 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson Primaax 230 or 460 Suspension; 1.75" Bore |
| International | HV613 | 2019-2020 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson Primaax 230 or 460 Suspension; 1.75" Bore |
| Kenworth | T680 | 2013-2020 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson Primaax EX462 Suspension; 8.5-10.5 ride Height; 1.75" Bore |
| Kenworth | T880 | 2014-2020 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson Primaax EX462 Suspension; 8.5-10.5 ride Height; 1.75" Bore |
| Mack | TD700 | 2010-2017 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson 40,000lb Primaax or Firemaax EX Suspension; 1.75" Bore |
| Volvo | VHD | 2001-2017 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson 40,000lb Primaax or Firemaax EX Suspension; 1.75" Bore |
| Volvo | VNL | 2000-2018 | Rear | 20782199 | 60657003 | 60657003L | Hendrickson 40,000lb Primaax or Firemaax EX Suspension; 1.75" Bore |
| Western Star | 4700SB | 2012-2020 | Rear | 20782199 | 60657003 | 60657003L | |
| Western Star | 4700SF | 2012-2020 | Rear | 20782199 | 60657003 | 60657003L |
*All application data is supplied by the manufacturer. It may not cover all options for a specific make / model listed. Always check OEM numbers prior to ordering.
