Description

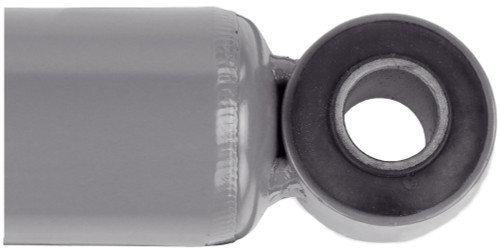

Cargomaxx HD Shock Absorber- Steer Axle- Bluebird- replaces 65162 / 85959
When it’s time to replace shocks, don’t trust anything other than premium replacement components. Ask for CARGOMAXX HD™ shock absorbers. Road-proven in the most extreme conditions, CARGOMAXX HD™ shocks are engineered to meet or exceed OE specifications while offering the ideal solution to withstand the repetitive cycling every truck’s suspension system must endure. Dynamic damping offers best-in-class handling and control, no matter the environment or road conditions. Count on CARGOMAXX HD™ shocks for a smooth ride and maximum cargo protection.

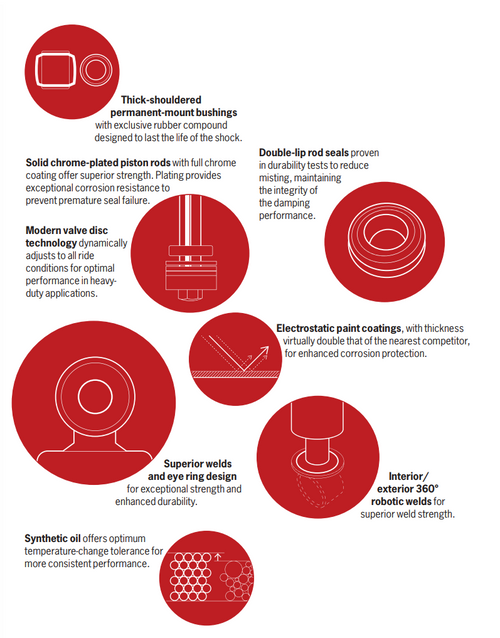

FEATURES:
• Best-in-class warranty - (2Y/200k)
• Square-edged piston seal - designed for low friction, consistent damping, and to help prevent oil leakage
• Nitrogen gas-charged - provides faster response time to changing road conditions
• Chrome-plated piston rods - resists corrosion and helps prolong seal life
• Double-lip rod seals - an extra layer of protection against leaks and misting
• Superior rings - 360° robotic welds and seamless rings mean CARGOMAXX HD™ shocks hang tough for longer
• Electrostatic paint - applied almost twice as thick as the nearest competitor
• Synthetic oil - resists cavitation and is more resistant to temperature fluctuations than cheaper conventional-fill shocks
SPECS:
| Top Mount Size | Bottom Mount Size | Extended Length | Compressed Length | Stroke | Charge |
| 3/4" x 2 5/16" | 3/4" x 2 5/16" | 21.34 | 13.74 | 7.6 | Gas |
| Style | Eye with Sleeve/Eye with Sleeve (ES/ES) | ||||
APPLICATIONS*:
| Make | Model | Position | Years | OEM Part Numbers | |
| Blue Bird | All American FE | Front | 1989-2016 | 1013592000 | 106303 |
| Blue Bird | All American RE | Front | 1989-2020 | 1013592000 | 106303 |
| Freightliner | M2 106 | Front | 2009-2020 | 1013592000 | 106303 |
| Sterling Truck | Acterra | Front | 2003-2010 | 1013592000 | 106303 |
| Sterling Truck | Acterra 5500 | Front | 2001-2002 | 1013592000 | 106303 |
| Sterling Truck | Acterra 6500 | Front | 2004-2007 | 1013592000 | 106303 |
| Sterling Truck | Acterra 7500 | Front | 2001-2003 | 1013592000 | 106303 |
*All application data is supplied by the manufacturer. It may not cover all options for a specific make / model listed. Always check OEM numbers prior to ordering.
CROSS REFERENCE:
| Name | Part Number |
|---|---|
| Automann | A85959 |
| Bluebird Bus | 0055008 |
| Bluebird Bus | 0055017 |
| Bluebird Bus | 0085990 |
| Bluebird Bus | 58913011 |
| Freightliner | 10-13760-000 |
| Freightliner | 16-18094-000 |
| Freightliner | 4717.000.00440 |
| Freightliner | 4717.000.02991 |
| Gabriel | 85959 |
| Hendrickson | 58913007 |
| Hendrickson | 58913008 |
| Hendrickson | 58913009 |
| Hendrickson | 58913009L |
| Hendrickson | 659923 |
| Hendrickson | 65992003 |
| Monroe | 65162 |
| Peterbilt | 665876 |
| Peterbilt | B716000 |
