Description

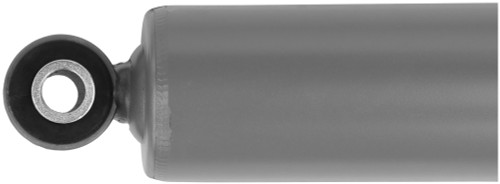

Cargomaxx HD Shock Absorber- Steer Axle- PACCAR- replaces 65175 / 85084
When it’s time to replace shocks, don’t trust anything other than premium replacement components. Ask for CARGOMAXX HD™ shock absorbers. Road-proven in the most extreme conditions, CARGOMAXX HD™ shocks are engineered to meet or exceed OE specifications while offering the ideal solution to withstand the repetitive cycling every truck’s suspension system must endure. Dynamic damping offers best-in-class handling and control, no matter the environment or road conditions. Count on CARGOMAXX HD™ shocks for a smooth ride and maximum cargo protection.
FEATURES:
• Best-in-class warranty - (2Y/200k)
• Square-edged piston seal - designed for low friction, consistent damping, and to help prevent oil leakage
• Nitrogen gas-charged - provides faster response time to changing road conditions
• Chrome-plated piston rods - resists corrosion and helps prolong seal life
• Double-lip rod seals - an extra layer of protection against leaks and misting
• Superior rings - 360° robotic welds and seamless rings mean CARGOMAXX HD™ shocks hang tough for longer
• Electrostatic paint - applied almost twice as thick as the nearest competitor
• Synthetic oil - resists cavitation and is more resistant to temperature fluctuations than cheaper conventional-fill shocks
Product Specs
| Dayton_no | Top Mount Size | Bottom Mount Size | Extended Length | Compressed Length | Stroke | Charge | Style |
| 441-85084 | 5/8" x 3 1/4" | 5/8" x 1 3/4" | 20.71 | 13.54 | 7.17 | Gas | Eye with Sleeve/Eye with Sleeve (ES/ES) |
Applications
| Kenworth | T270 | 2010-2020 | Front | B716019 | 8,000lb Front Axle; 1.75" Bore |
| Kenworth | T370 | 2010-2019 | Front | B716019 | 1.75" Bore |
| Kenworth | T680 | 2013-2020 | Front | B716019 | 1.75" Bore |
| Kenworth | T880 | 2014-2020 | Front | B716019 | 10,000-20,000lb Taper Leaf Front Suspension; 1.75" Bore |
| Peterbilt | 330 | 2016-2019 | Front | B716019 | 10,000-14,600lb Taper Leaf Suspension; Set Back Axle; 1.75" Bore |
| Peterbilt | 337 | 2010-2020 | Front | B716019 | 10,000-14,600lb Taper Leaf Suspension; Set Back Axle; 1.75" Bore |
| Peterbilt | 348 | 2010-2012, 2014-2018 | Front | B716019 | 1.75" Bore |
| Peterbilt | 382 | 2013-2016 | Front | B716019 | |
| Peterbilt | 567 | 2014-2020 | Front | B716019 | 10,000-14,600lb Taper Leaf Suspension; Set Back Axle; 1.75" Bore |
| Peterbilt | 579 | 2013-2020 | Front | B716019 | 1.75" Bore |
| Kenworth | T300 | 2016-2019 | Front | B716019 | 10,000-14,600lb Taper Leaf Suspension; Set Back Axle; 1.75" Bore |
*All application data is supplied by the manufacturer. It may not cover all options for a specific make / model listed. Always check OEM numbers prior to ordering.
