Description
- Length: 15 ft., Leads: 12 in. and 40 in.
- 1/2 in. Outer Dia., 1/2 in. Male Pipe Fitting
- Color: Red and Blue
- Working Temperature: -40 Deg F to 200 Deg F
- Meets SAE J844, DOT FMVSS 571.106, and FMCSA 393.45
Product Overview

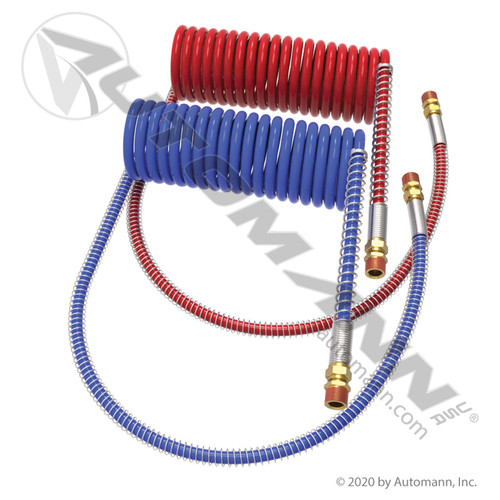

Automann's 15 ft. coiled air line set for tractor-trailer air brake applications. Red and blue color-coded lines distinguish emergency and service connections. Constructed from DOT-compliant 1/2 in. OD nylon tubing per SAE J844 with 1/2 in. NPT fittings. The 40in tractor lead provides adequate length for use with cab mounted suspension systems or pogo sticks
Specific Features & Benefits
- DOT-compliant SAE J844 nylon tubing ensures regulatory compliance and consistent airflow in both air brake service and emergency lines
- Red and blue color-coded lines clearly identify emergency and service connections during tractor-trailer hookup
- The 40in tractor lead provides adequate length for use with cab mounted suspension systems or pogo sticks
- Maintains flexibility and seal integrity across all-season vehicle operations
Specifications
| Applications | Universal |
| Type 1 | Coiled Air Assemblies |
| Type | DOT 1/2" OD Nylon SAE J844 Tubing with 1/2" NPT Ends |
| Assembly Length | 15 ft |
| Length of Leads | 12" & 40" |
| Air Line Color | Blue & Red |
| Set | Yes |
Series
| International | ProStar (No Year) | |
| Kenworth | T660 (No Year) | |
| Peterbilt | 379 (No Year) | |
| Volvo/White | VNL 670 Gen 2 (2003-2019) (No Year) |
Cross References
| Grote | 81-0015-40 |
| Phillips | 11-740 |
| Phillips | 11340 |
| Tectran | 17215040 |
| Velvac | 022001 |
