Product Description
Our "No Hassle" kit includes the oil, fuel filter and fuel water separator for most ISB engines through 2012 (5.9l/6.7l).
****OE numbers are supplied as reference. Be sure to check your original numbers to ensure that you are getting the right kit.****

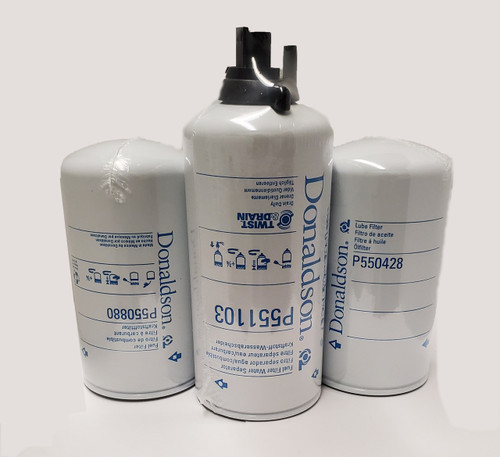

It includes the following Donaldson filters:
Donaldson P550428- Replaces LF3970
Outer Diameter 3.66 inch (93 mm)
Thread Size 1 1/8-16 UN
Length 6.85 inch (174 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 50% 20 micron
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Fuel Water Separator, Spin-on- Donaldson P551103- Replaces Fleetguard FS1065
Stand Pipe Yes Y/N
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 9.4 inch (238.7 mm)
Gasket OD 2.8 inch (71 mm)
Gasket ID 2.4 inch (61 mm)
Efficiency 99% 10 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Composite
Primary Application CUMMINS 3406889

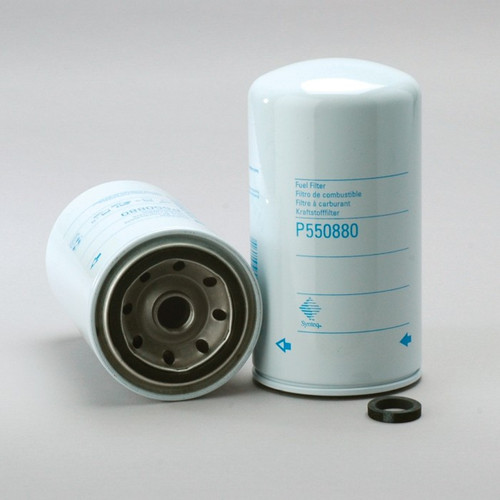

Fuel Filter, Spin-on- Donaldson P550880- Replaces Fleetguard FF5632
Outer Diameter 3.66 inch (93 mm)
Thread Size M20 x 1.5
Length 6.85 inch (174 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99.9% 5 micron
Efficiency Test Std SAE J1985
Type Secondary
Style Spin-On
Media Type Meltblown
Note: Some items may ship direct from the manufacturer
*All application data is supplied by Donaldson and/or Baldwin. It may not cover all options for a specific make / model listed. If the vehicle has been modified be sure to cross existing filter numbers prior to ordering. Always check catalog for specific application numbers prior to ordering. Donaldson information and interchanges are available online at shop.donaldson.com
