Product Description
Our "No Hassle" kit includes the oil, fuel filter and fuel water separator for most ISC8.3 & ISL engines through 2012.
****OE numbers are supplied as reference. Be sure to check your original numbers to ensure that you are getting the right kit.****

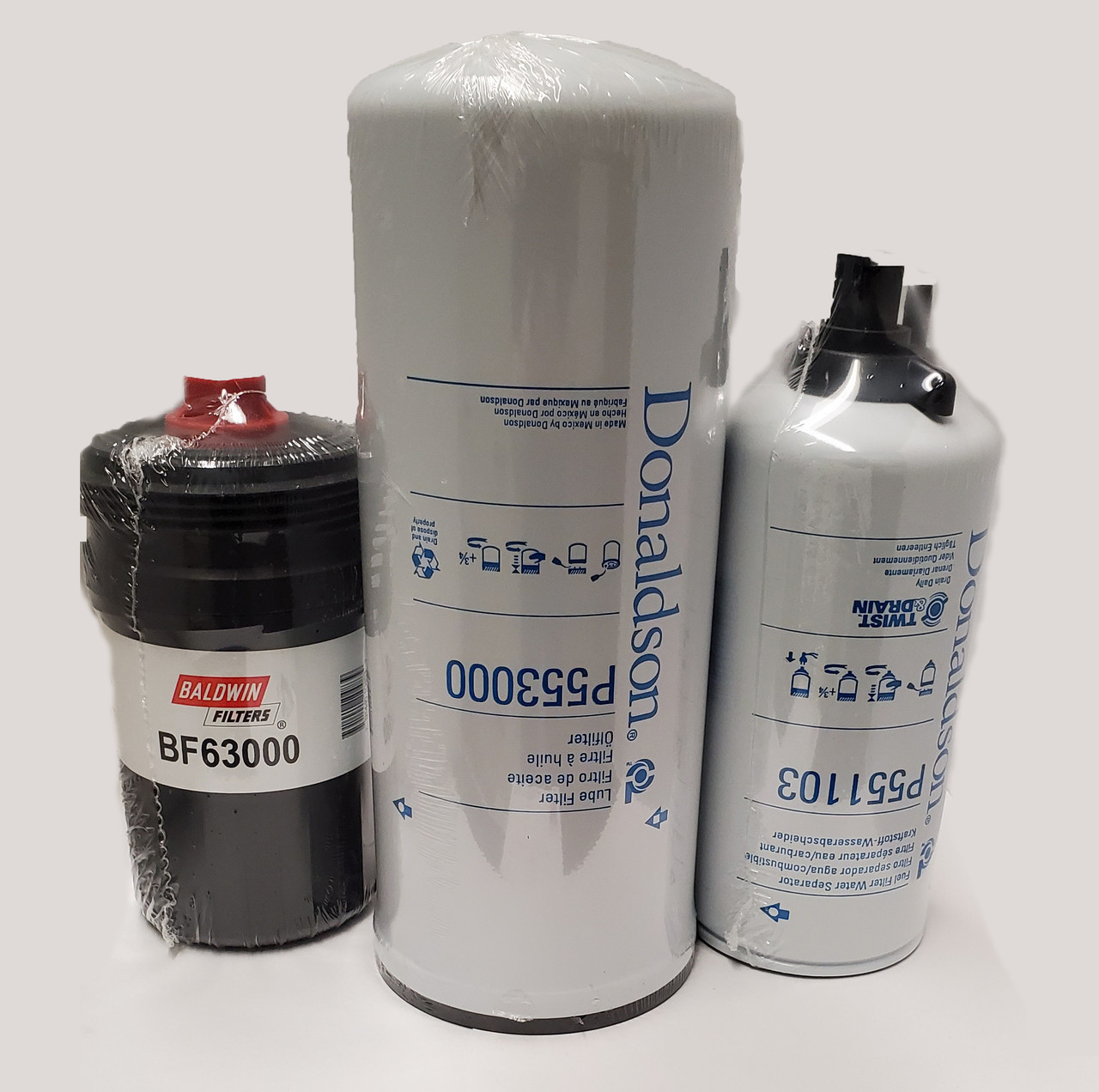

It includes the following filters:
Oil Filter, Spin-on- Donaldson P553000- Replaces Fleetguard LF9009
Outer Diameter 4.65 inch (118 mm)
Thread Size 2 1/4-12 UN
Length 11.65 inch (296 mm)
Gasket OD 4.69 inch (119 mm)
Gasket ID 4.02 inch (102 mm)
Efficiency 99% 17 micron
Efficiency Test Std ISO 4548-12
Media Type Synthetic
Collapse Burst 149 psi (10.3 bar)
Type Full-Flow
Style Spin-On
Fuel Water Separator, Spin-on- Donaldson P551103- Replaces Fleetguard FS1065
Stand Pipe Yes Y/N
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 9.4 inch (238.7 mm)
Gasket OD 2.8 inch (71 mm)
Gasket ID 2.4 inch (61 mm)
Efficiency 99% 10 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Composite
Primary Application CUMMINS 3406889
Fuel Filter- “User Friendly” Spin-on- Donaldson P553009- Replaces Fleetguard FF63009
Thread:S102 x 4
O.D.:4 (101.6)
I.D.:1 3/32 (27.9)
Length:7 13/16 (198.1)
Composite Housing
Note: Some items may ship direct from the manufacturer
*All application data is supplied by Donaldson and/or Baldwin. It may not cover all options for a specific make / model listed. If the vehicle has been modified be sure to cross existing filter numbers prior to ordering. Always check catalog for specific application numbers prior to ordering. Donaldson information and interchanges are available online at shop.donaldson.com
