Product Description

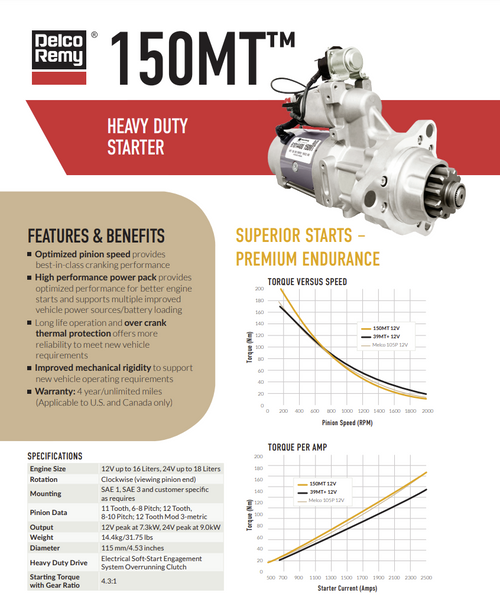

Delco Remy 150MT Starter 61015901- 24v, 11 tooth, 3 hole Rotatable Flange- XHD- replaces 8200330
Designed to start heavy duty and off-road vehicles in all conditions and environments, Delco Remy starters are engineered to perfection. Available proprietary features also protect the starter from system problems including over cranking, low battery capacity, voltage spikes, high-starting circuit resistance, or operator misuse.
- Provides optimized performance for better engine starts
- Supports multiple improved vehicle power sources/battery loading
- Meets or exceeds new crank requirements set by OEMs
- Provides more reliability with over crank thermal protection and long life operation
- Supports new vehicle operating requirements with improved mechanical rigidity
- Optimized pinion speed provides best-in-class cranking performance
| Voltage | 24.0 2h |
|---|---|
| Design | Planetary Gear Reduction |
| Family | 150MT |
| Power Rating | 9.0 k7 |
| Mounting Bolt Hole Quantity | 3 |
| Mounting Flange to End of Case | 359.3 mm |
| Mounting Flange to Pinion End at Rest | 48.4 mm |
| Case Grounding | Insulated Case |
| Nose Cone Material | Cast Aluminum |
| Nose Cone Type | Open Nose |
| Starter Rotation | Clockwise |
| Solenoid Attached | Yes |
| Housing Material | Steel |
| Re-Clockable Flange | Yes |
| Tooth Quantity | 11 |
| Mounting Type | Flange |
| Over-Crank Protection | Yes |
