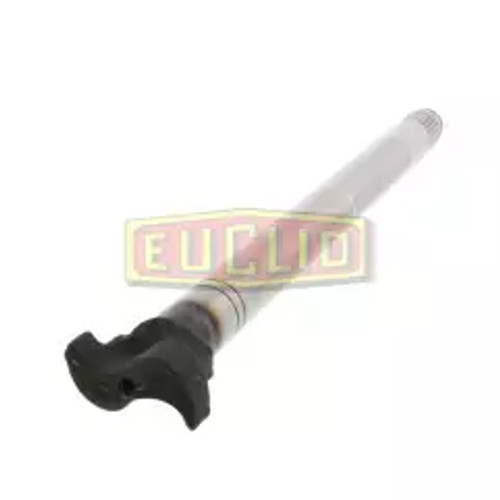

Description
Left or Right:
RH
Brake Diameter:
12.25 in.
Camshaft Spline Count:
28
Effective Length:
22.06 in.
Brake Type:
High-Lift
Head Type:
05
Bushing Journal Dia.:
1.50 in.
Camshaft Spline Dia.:
1.50 in.
Bushing Journal Length:
2.22 in.
Paired Camshaft:
E9757
Axle:
Trailer
Camshaft Repair Kit:
E2469 (Nylon Bushing); E5307 Bronze Spider Bushing
Brake Hardware Kit:
E10757 (With 1 in. O.D. Anchor Pin, E10756 (With 1.25 in. O.D. Anchor Pin)
OEM:
Dana-Spicer
Notes:
0794L/R Head Fast-Rise. Euclid fabricated open roller end brake shoe numbers are: E-2393A, E-2394A, and E-5303A
VMRS Code:
013-017-004
Mfg. Part:
Dana-Spicer M12WKR20-222
Application Information 1:
WARNING: These camshafts are for use with fabricated brakes shoes only! DO NOT use these new camshafts with cast brake shoe or fabricated closed roller-end brake shoes., WARNING: These camshafts are for use with fabricated brakes shoes only! DO NOT use these new camshafts with cast brake shoe or fabricated closed roller-end brake shoes.
Application Information 2:
WARNING: E-586, 1-1/2 in. diameter, Brake Shoe Rollers must be used with this new head design. E-586 rollers are now available in Brake Repair Kits E-9281, E-9282 and E-9283., WARNING: E-586, 1-1/2 in. diameter, Brake Shoe Rollers must be used with this new head design. E-586 rollers are now available in Brake Repair Kits E-9281, E-9282 and E-9283.
Application Information 3:
WARNING: These camshafts should not be used in conjunction with old Fast-Rise camshafts on the same axle. The rate of brake application is different between the two head designs., WARNING: These camshafts should not be used in conjunction with old Fast-Rise camshafts on the same axle. The rate of brake application is different between the two head designs.
Cross References
| Automann | 12328220202 |
| D and E | D&E9758 |
| Dayton Parts Batco | 04642211 |
| Hercules | H10485R |
| Spicer | M12WKR20222 |
