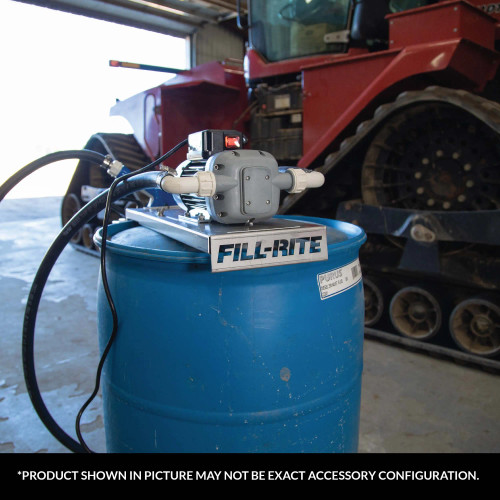

Fill-Rite DEF Transfer Pump Kit- 115v AC for 55g Drums 8 GPM DF120DAN520
The DF120DAN520 model is a 115V AC DEF transfer pump. This pump and accessory bundle includes a stainless steel drum mount, steel suction pipe, discharge hose, automatic nozzle, and all fittings needed for installation..
- Durable Construction – engineered with multi-diaphragm technology and EPDM seals, this pump excels in daily DEF transfer
- No Mess Performance – integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal
- No Crystallization – fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization
- Flexible Installation – convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
- Closed-Loop System – create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | -- |
| Compatible Fluids | DEF, Water |
| Inlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Outlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Mounting Type | Drum Bracket |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 6 ' |
| Max Operating Pressure (PSI) | 38 |
| Discharge Head (ft) | 87 ' |
| Suction Hose | ¾” x 5’ EPDM Suction Hose with Hose Barbs |
|---|---|
| Discharge Hose | ¾” X 20’ EPDM Hose |
| Nozzle | 1" Automatic DEF Nozzle (Stainless Steel Spout) |
| Cable Connection | Type B |
