Description
- Dust Tube: Yes
- Recoil Cutoff: Yes
- Can Try 89423 GasSLX Shock
Product Overview

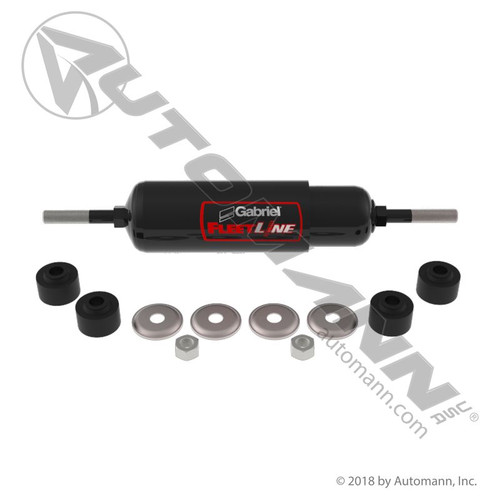

Gabriel's Fleetline Heavy Duty Shocks are direct OE replacements for class 6-8 trucks . Designed with a valve rating that compensates for suspension softening to offer performance that meets the original parts. Fleetline parts incorporate a caged piston design that provide superior dampening across the spectrum of operation. This part is fabricated to be long lasting; durable and keep your cabin stable even in the roughest conditions.
Specific Features & Benefits
- The self-compensating piston seal offers reliable and consistent shock absorption for a smooth and even ride
- The hydraulic stop prevents the shock from over-extending or topping out; extending the product's life
- Internal piston is made of chrome for improved corrosion resistance
- Multi stage all-coil spring valving provides improved dampening and reduces vibration
- Bulged design increases the fluid capacity and keeps cool in extreme conditions
- Features a 1-5/8" bore to handle harsh operating conditions
- Includes accessory kit to assist with installation
| Applications | International Kenworth Ottawa |
| Type | D85300 & 85700 |
| Gabriel Number | 85310 |
| Product Line | FleetLine |
| Collapsed Length | 11.71 |
| Lengths Stroke | 6.92 |
| Controls Rebound | 1379 |
| Controls Compression | 578 |
| External Diameter Illustration | D |
| Dust Tube | Yes |
| Recoil Cutoff | YES |
| Extended Length | 18.63 |
| Extended | 18.63 |
| Upper Mounting Kit | A141108 |
| Kit-1 (Qty) | (1) |
| KENWORTH | ADDITIONAL O.E.M. NUMBERS | Models with O.E.M. Number |
| KENWORTH | ADDITIONAL O.E.M. NUMBERS | Models with O.E.M. Number |
| KENWORTH | C500, C500B, C500K, C540 & C550 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K100, K100E, K125 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K300, T300 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T2000 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T400, T400B, T450B | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T600, T600A, T600B, T602 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T800, T800B, T800B(8x4), T800SH, T800H, T800W | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | W900, W900B, W900L, W900S | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | C500, C500B, C500K, C540 & C550 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K100, K100E, K125 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K300, T300 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T2000 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T400, T400B, T450B | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T600, T600A, T600B, T602 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T800, T800B, T800B(8x4), T800SH, T800H, T800W | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | W900, W900B, W900L, W900S | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | C500, C500B, C500K, C540 & C550 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K100, K100E, K125 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K300, T300 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T2000 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T400, T400B, T450B | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T600, T600A, T600B, T602 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T800, T800B, T800B(8x4), T800SH, T800H, T800W | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | W900, W900B, W900L, W900S | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | C500, C500B, C500K, C540 & C550 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K100, K100E, K125 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | K300, T300 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T2000 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T400, T400B, T450B | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T600, T600A, T600B, T602 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T800, T800B, T800B(8x4), T800SH, T800H, T800W | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | W900, W900B, W900L, W900S | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T400, T400B, T450B | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T600, T600A, T600B, T602 | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | T800, T800B, T800B(8x4), T800SH, T800H, T800W | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| KENWORTH | W900, W900B, W900L, W900S | All with Air Glide 100 Suspension with 8 air bags, 4 units required |
| MACK | Mack Additional Series | Additional O.E.M. Interchanges |
| OTTAWA TRUCK | Additional O.E.M. Interchanges | |
| VOLVO | Additional Volvo PDC Numbers | Additional O.E.M. Interchanges |
Cross References
| Gabriel | 85310 |
| Kenworth | 680476 |
| Kenworth | 680486 |
| Kenworth | K37429 |
| Kenworth | K37432 |
| Kenworth | K3747 |
| Kenworth | K3749 |
| Kenworth | K374C7 |
| Mack | 650404 |
| Meritor | 85310 |
| Ottawa | 90013787 |
| Volvo | 1091379 |
| Volvo/White | 1091379 |
