Description

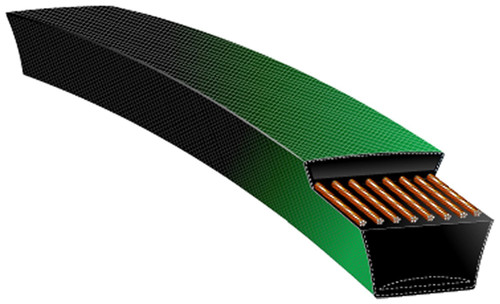

PoweRated V-Belts are designed as an alternative to conventional light-duty belts, with high-performance construction to deliver more horsepower, less stretch, and provide longer service life. PoweRated belts are suitable for outdoor power equipment, appliances, and industrial applications where Fractional Horsepower (FHP) belts are typically used. They are recommended for heavy-duty drives and clutching applications. Meets the requirements of high power, clutching ability, heavy shock load absorption and back idler-driven lawn and garden equipment.
- Designed with distinct green color bareback construction for smooth clutching on shock loaded, backside idler-driven equipment to ensure high crack resistance
- Low, aramid tensile cord positioned in a thin profile gives extreme flexibility and limited stretch with extraordinary strength and durability
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
NOTE: Gates PoweRated V-belts can be substituted for equivalent sizes of FHP low horsepower Gates Truflex V-belts.
Product Specifications
| Product Status | Active |
| Type | FHP Medium Horse-Power V-Belt |
| Section | 5L |
| Angle | 37 |
| Number of Strands | 1 |
| Top Width (in) | .66 |
| Top Width (mm) | 17 |
| Outside Circumference (in) | 87 |
| Outside Circumference (mm) | 2210 |
| Effective Length (in) | 87.15 |
| Effective Length (mm) | 2214 |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Aramid |
