Product Description

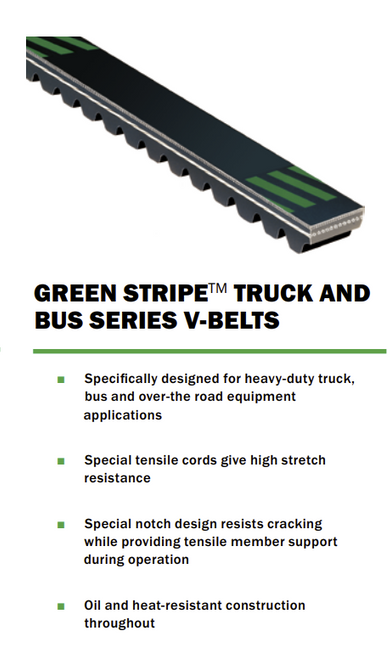

Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt.
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
Product Specifications
| Type | Truck & Bus V-Belt |
| Section | VA |
| Angle | 36 |
| Number of Strands | 1 |
| Top Width (in) | .775 |
| Top Width (mm) | 20 |
| Outside Circumference (in) | 55.14 |
| Outside Circumference (mm) | 1401 |
| Effective Length (in) | 54.56 |
| Effective Length (mm) | 1386 |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
