Description

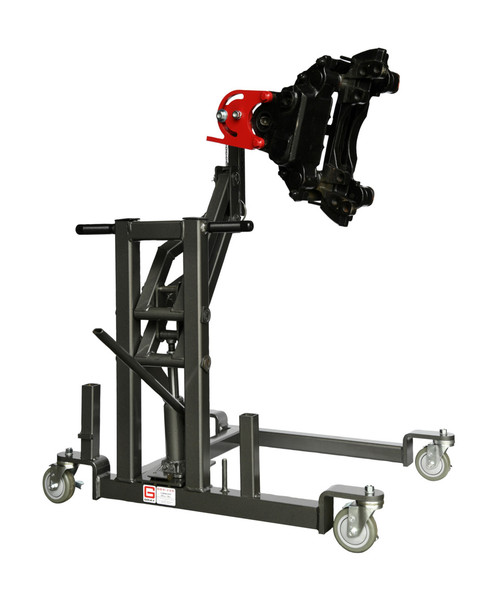

The DBD-200 Disc Brake Dolly handles both calipers and rotors eliminating the need for additional pieces of equipment in the shop. Gray's DBD-200 saves time and increases shop productivity as all adapters may be stored on the dolly and can be interchanged quickly by pinning and unpinning adapters to the post.
With Gray Manufacturing's DBD-200, technicians can easily remove and install both calipers and rotors. It not only holds and lifts components for removal and installation, but it also allows the user to rotate the component for easy servicing and realignment. All adapters can be stored on the dolly, making them readily accessible, and may be interchanged quickly by pinning and unpinning the adapter to the post.
Patent #9,771,990
Features:
- Redesigned to accommodate even more applications
- Handles both calipers and rotors
- Tool tray to hold tools and hardware
- Includes wheel end adapter and caliper adapters

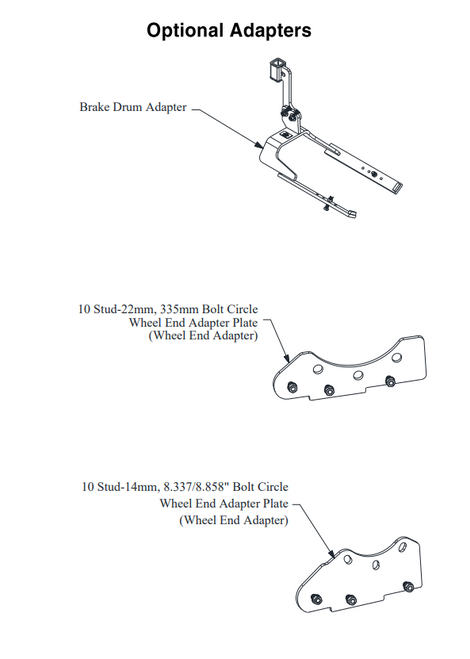

- Optional Brake Drum Adapter and additional wheel adapters also available
- Handles and 4 swivel casters for maneuverability
- Made in the U.S.A.
| Capacity | 200 lbs |
| Maximum Lift Height (Top of Tool Post) | 44" |
| Start Height (Top of Tool Post) | 16" |
| Width | 42 3/8" |
| Length | 31 5/8" |
| Weight | 175 lbs |
| Rotor Adapter Capacity | 175 lbs |
| Caliper Adapter Capacity | 100 lbs |
These are Genuine Gray and Made in the USA.
*NOTE: This product will be shipped LTL Freight. Additional cost for delivery if it is residential or you don't have a forklift to remove the product from the delivery truck. If applicable please ensure that you select the options needed prior to pressing "add to cart". If an option is not selected and UPS determines it is residential or that a liftgate is needed it will delay delivery.
