Description
PRODUCT SPECIFICATIONS
Pendant (Near)
The new standard for Trilliant® performance in a small, mount-anywhere
work lamp
• Rugged mechanical design ensures consistent performance and long life in tough environmental conditions.
• Small size combined with tough construction allows mounting in places where larger or less rugged lamps cannot fit or survive.
• Advanced circuit design provides electronically quiet operation; protects against EMI without interfering with other
electronic devices.
• Clean, white light designed to represent true colors, just like day light.
MATERIALS
Weight (Pinch mount including hardware): 0.879lb (398.5g)
Connector Type: Mates with DT06-2S
Ambient Operating Temperature (without thermal
pullback): -40F to 122F (-40C to 50C)
Ambient Storage Temperature: -67F to 230F (-55C to 110C)
Housing Material: Die Cast Aluminum, Black Powder
Coated Finish
Lens Material: UV resistant, Hard Coated Polycarbonate
Heat Management: Radial Fin Array, Aluminum Fins

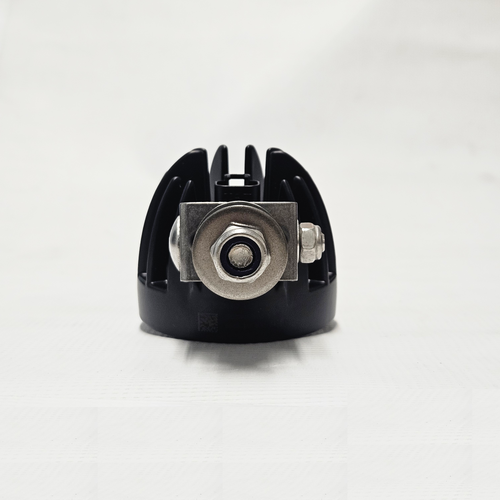

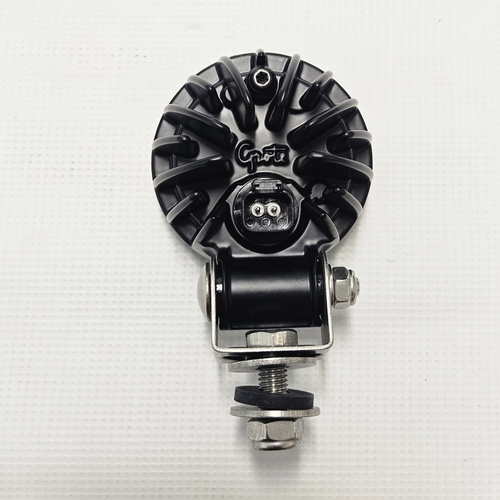

Mounting Options: Pedestal bracket with M10 bolt
ELECTRONIC CHARACTERISTICS
Input Voltage: 12V, 24V
Power Draw: 20W
Electrical Protection: ,overvoltage, undervoltage,
and polarity
OPTICS
Correlated Color Temperature (CCT): 5700K
RATINGS AND COMPLIANCES
Impact: EN 60068
Ingress Protection: IP69K; IPX7
R1O
CISPR Class 5
