Description

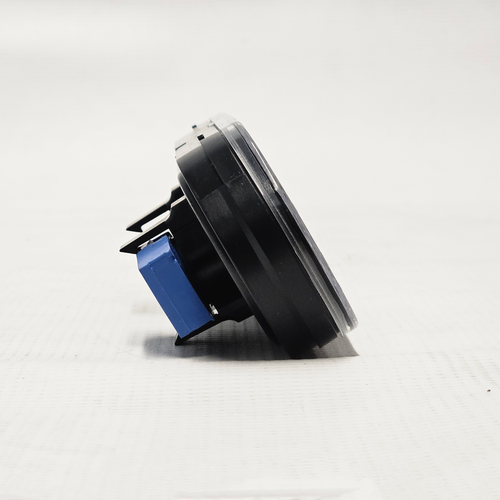

6" Oval LED Stop Tail Turn Lights with Integrated Back-up, Male Pin Termination
Two Lamps in One
- Innovative patented design combines all Stop/Tail/Turn and Back-up functions into one industry standard size lamp.
- Symmetrical design meets legal requirements at any mounting angle.
- Two-lamps-in-one design eliminates two holes and two lamps in rear of straight, vocational, and specialized vehicles.
- This design can also replace separate back-up lamp in power modules.
- Lamp design saves time and money on installation, eliminates potential leaks in vehicle, improves structural integrity and corrosion resistance, and leaves more room for other controls, such as for lift gates and grab rails.
- LED technology provides less maintenance costs and long life.
- Industry-standard design fits existing mounting grommets, brackets, and flanges.
- Thin profile design minimizes chance of external impact damage.
- Separate connectors allow for full functionality of existing harnesses
- Can also be used as a stand alone backup or worklight by using provided dummy plug for the S/T/T side.
PRODUCT SPECIFICATIONS
MATERIALS
Integrated Back-up Lenses : Clear High Impact Acrylic,
Clear Polycarbonate
S/T/T Lens : Clear High Impact Acrylic
Housing : Black Polycarbonate/ABS blend
Assembly : Laser Weld
Connection Types: round male pin
FMVSS
S/T/T with Integrated Back-up: FMVSS 108 : I, S, T, R2
S/T/T lamp only: FMVSS 108 : I, S, T
VOLTAGE
12 volts
