Description

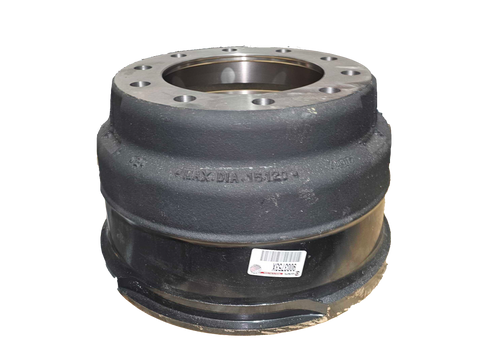

TruPilot brake drum (Low profile brake drum)
NOTE: Due to size restrictions, brake drums are currently only available for pickup or via Truck Freight.
| Finished Weight: | 95 |
| Maximum Wear Diameter: | 15.12 |
| Drum Mount: | Outboard |
| Drum Type: | BDC |
| Wheel Type: | Disc |
| A - Overall Diameter: | 17.4 |
| B - Dust Shield Recess Diameter: | 0 |
| C - Dust Shield Recess Depth: | 0 |
| Brake Size: | 15.00x6.00 |
| D - Brake Surface Diameter: | 15 |
| E - Brake Surface Width: | 7.14 |
| F - Mounting Flange Diameter: | 13.3 |
| G - Overall Depth: | 10.28 |
| H - Pilot Diameter: | 8.78 |
| I - Bolt Circle Diameter: | 11.25 |
| J - Number of Bolt Holes: | 10 |
| Bolt Hole Size: | 1 |
| K - Squealer Band Width: | 1.18 |
| L - Mounting Flange Thickness: | 0.5 |
| M - Outside Sidewall Diameter: | 16.1 |
| N - Sidewall Offset: | 3.32 |
| O - Inside Finished Diameter: | 13 |
| Special Information: | TruPilot brake drum, has 8.78 & 8.66 pilot diameters |
