Donaldson Exhaust M085293 M085293 Donaldson Muffler- Style 1

M085293 Donaldson M085293-016-147 MUFFLER ASSEMBLY Call for information. All Brand New Items. In Stock Now. Don't see here, we can get it.

Exhaust Mufflers Product Attributes
Inlet Diameter:	2.89 Inches (73.41 MM)
Outlet Diameter:	3.16 Inches (80.26 MM)
Body Diameter:	8.50 Inches (215.90 MM)
Body Length:	31.75 Inches (806.45 MM)
Overall Length:	46.25 Inches (1174.75 MM)
Rated Flow LR:	630.00 CFM (17.829 CMM)
Rated Flow MR:	89100 CFM (2521.53 CMM)
Rated Flow HR:	1091.00 CFM (30.8753 CMM)
Back Press LR:	1.00 In Hg (25.40 MM Hg)
Back Press MR:	2.00 In Hg (50.80 MM Hg)
Back Press HR:	3.00 In Hg (76.20 MM Hg)
Attenuation:	15-20 dBA
Primary Application:	TEREX 9063047
Product Type Description:	MUFFLER, ROUND, STYLE 1
Price Type:	E

Packaged Dimensions

Country of Origin:

US (United States)

Gross Length in Inches:

Gross Height in Inches:

9.1

Gross Weight in Pounds:

Drawing Version:

Gross Width in Inches:

8.8

Manufacturer's Waranty

INLET SIZE 2.89"

OUTLET SIZE 3.16"

BODY DIAMETER 8.46"

BODY LENGTH 31.62"

INLET END

OUTLET END

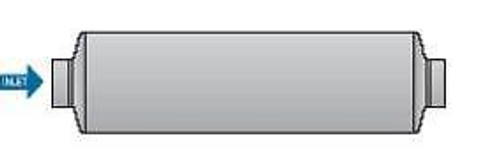

BODY SHAPE ROUND

STYLE 1
