Donaldson Exhaust M101169
Sale

Donaldson Exhaust

M101169 Donaldson Muffler- Style 3/4- Off Road Use Only- Dual Flow

(No reviews yet) Write a Review
$440.54
SKU:
M101169
UPC:
742330114018
Shipping:
Calculated at Checkout
INLET SIZE:
4"
OUTLET SIZE:
4"
BODY DIAMETER:
10.08"
BODY LENGTH:
23.75"
INLET:
SIDE
OUTLET:
END
BODY SHAPE:
ROUND
STYLE:
3
Adding to cart… The item has been added

Description

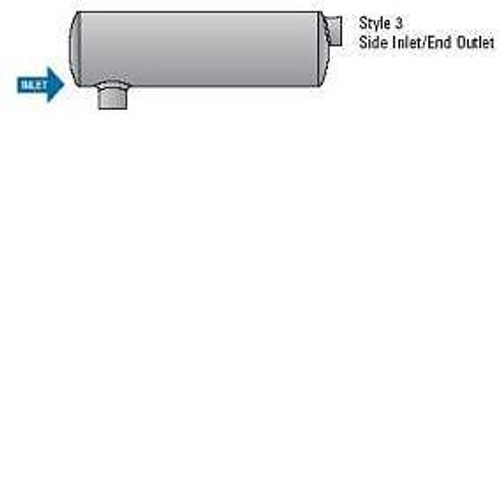

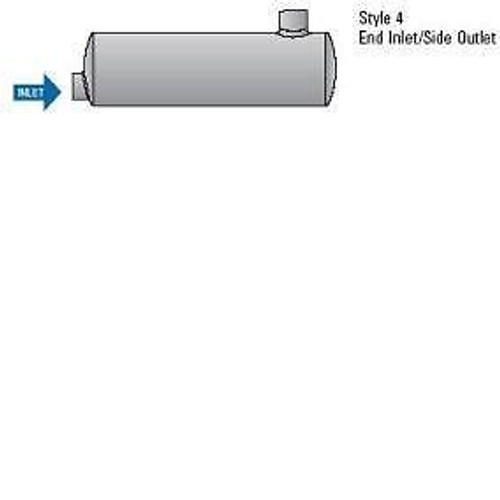

M101169 Donaldson M101169-248-147 MUFFLER. This muffler is both a style 3 and a style 4 which means it can flow either way. It can be used as either a style 3 or a style 4.


Replaces the following:

ASTEC AU100240
BADGER 1000146
FREIGHTLINER DNM101169
GRADALL 80973013
HURRICANE COMPRESSOR 12471558
INGERSOLL RAND 13166871
MORBARK 29228349
NELSON 201572N
NEW HOLLAND 10925
OSBO INTERNATIONAL 402744
PETTIBONE LL847458
VERMEER 163642518



Exhaust Mufflers Product Attributes
Inlet Diameter:  4.00 Inches (101.60 MM)
Outlet Diameter:  4.00 Inches (101.60 MM)
Body Diameter:  10.00 Inches (254 MM)
Body Length:  24.00 Inches (609.60 MM)
Overall Length:  29.18 Inches (741.17 MM)
Rated Flow LR:  1130.00 CFM (31.979 CMM)
Rated Flow MR:  1570 CFM (44.431 CMM)
Rated Flow HR:  1570.00 CFM (44.431 CMM)
Back Press LR:  1.00 In Hg (25.40 MM Hg)
Back Press MR:  2 In Hg (50.80 MM Hg)
Back Press HR:  2.00 In Hg (50.80 MM Hg)
Attenuation:  12-18 dBA
Primary Application:  OFFROAD VEHICLES & EQUIPMENT
Product Type Description:  MUFFLER, ROUND, STYLE 3





Warranty Information

Manufacturer's Waranty
