Description

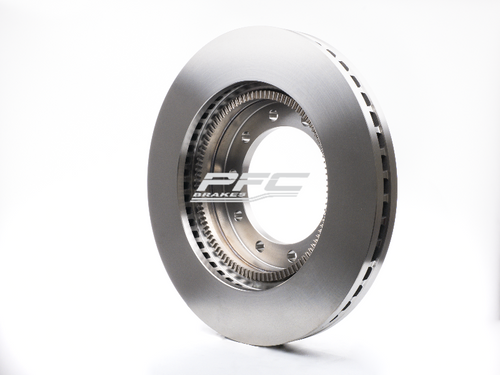

PFC ZERO FAILURES™ Rotors
- 100% American Made
- Runout < .0005 in. / Thickness Var. < .0002 in.
- Provides high-temperature strength and durability.
- 47 or more vanes. Reduces vibration and pulsation
- Vanes are turned on the OD & ID. Provides superior heat dissipation.
- Surface finish < .7 Microns. Improves balance and reduces warping and vibration.
- 100% Inspected. Assures EVERY part meets specifications.
Every single ZERO FAILURES™ rotor is engineered and machined to meet and exceed the specific demands of each severe duty market.
Number of bolt holes 10
Number of studs None
ABS sensor ring included Yes
Studs included None
Inner bearing included None
Surface finish Non-directional
Bolt pattern 10×7.25in / 10×184.15mm
Outside diameter (in) 15.35
Outside diameter (mm) 390
Style OE Replacement
Solid or vented Vented
Slotted No
Cross-drilled No
Rotation direction Non-directional
Construction Full cast
Material G3000
Discard thickness (in) 1.417
Discard thickness (mm) 36.0
Center hole size (in) 6.00
Center hole size (mm) 152.5
Overall height (in) 3.38
Overall height (mm) 86.0
APPLICATIONS
| Make | Model | Year | Notes |
|---|---|---|---|
| Blue Bird | All American FE Hydraulic Disc Brakes with Meritor Quadraulic caliper | 2003 - 2025 | Front |
| Blue Bird | Vision School Bus Hydraulic Disc Brakes with Meritor Quadraulic caliper | 2003 - 2025 | Front |
| Chevrolet | C4500 Kodiak 4 Piston Caliper | 2003 - 2010 | Front |
| Chevrolet | C5500 Kodiak 4 Piston Caliper | 2003 - 2010 | Front/Rear |
| Chevrolet | C6500 Kodiak 4 Piston Caliper | 2003 - 2010 | Front/Rear |
| Chevrolet | C7500 Kodiak 10 Hole, Height 3.45" | 2003 - 2010 | Front/Rear |
| Chevrolet | C7500 Kodiak exc. 21,000 Lbs axle | 2003 - 2010 | Front/Rear |
| Chevrolet | T6500 | 2004 - 2010 | Front |
| Chevrolet | T7500 | 2004 - 2010 | Front |
| GMC | C4500 Topkick 4 Piston Caliper | 2003 - 2010 | Front |
| GMC | C5500 Topkick 4 Piston Caliper | 2003 - 2010 | Front/Rear |
| GMC | C6500 Topkick 4 Piston Caliper | 2003 - 2010 | Front/Rear |
| GMC | C6500 Topkick exc. 21,000 Lbs axle | 2003 - 2010 | Front/Rear |
| GMC | C7500 Topkick 4 Piston Caliper | 2003 - 2010 | Front/Rear |
| GMC | T6500 | 2004 - 2010 | Front |
| GMC | T7500 | 2004 - 2010 | Front |
| Hino | 238 | 2005 - 2012 | Front/Rear |
| Hino | 268 | 2005 - 2011 | Front/Rear |
| Isuzu | F FTR | 2003 - 2009 | Front/Rear |
| Isuzu | F FTR; 15,000 & 19,000 Lbs Axle | 2003 - 2009 | Front/Rear |
| Isuzu | F FVR | 2003 - 2009 | Front/Rear |
| Isuzu | F FVR; 15,000 & 19,000 Lbs Axle | 2003 - 2009 | Front/Rear |
| Isuzu | F FXR | 2003 - 2009 | Front/Rear |
| Isuzu | F FXR; 15,000 & 19,000 Lbs Axle | 2003 - 2009 | Front/Rear |
| Isuzu | FTR | 2003 - 2009 | Front/Rear |
| Isuzu | FVR | 2003 - 2009 | Front/Rear |
| Isuzu | FXR | 2007 - 2009 | Front/Rear |
