Product Description
Rev Max Front Steer Axle Wheel Seal RM-S01
Severe duty wheel seals for steer axles rated up to 12,000lbs.
This premium wheel seal which uses HNBR and comes with a 3-year warranty.
Equivalent to:
National Gold 38000 series
Stemco Discover
SKF Extreme
- Can be used with oil or grease hubs
- Installed with any flat instrument
- Flex design to help prevent cocked seals
- Top plate protects seal from impact & brake heat
- Wider ID & OD for greater contact coverage
- Free tube of seal bond in every box
- Built for off-road and other Severe Duty applications
- More internal sealing points
- Seal lips run on a polished surface
- Packaged for longer shelf life
Cross Reference
| National Standard | 370001A* |
| National Gold | 380001A |
| Stemco Voyager | 383-0136* |
| Stemco Discover | 383-0236 |
| Stemco Grit Guard | 382-8036 |
| Stemco Guardian | 308-0836 |
| Chicago Rawhide / SKF Classic | 35066* |
| Chicago Rawhide / SKF Plus | 35059* |
| Chicago Rawhide / SKF Plus XL | 35058 |
| Chicago Rawhide / SKF LL | 35103 |
| Conmet | 10045885 |
| Meritor | MER0236 |
| RevHD Rev1 | R1-S01* |
*RevMax are upgrades to these seals

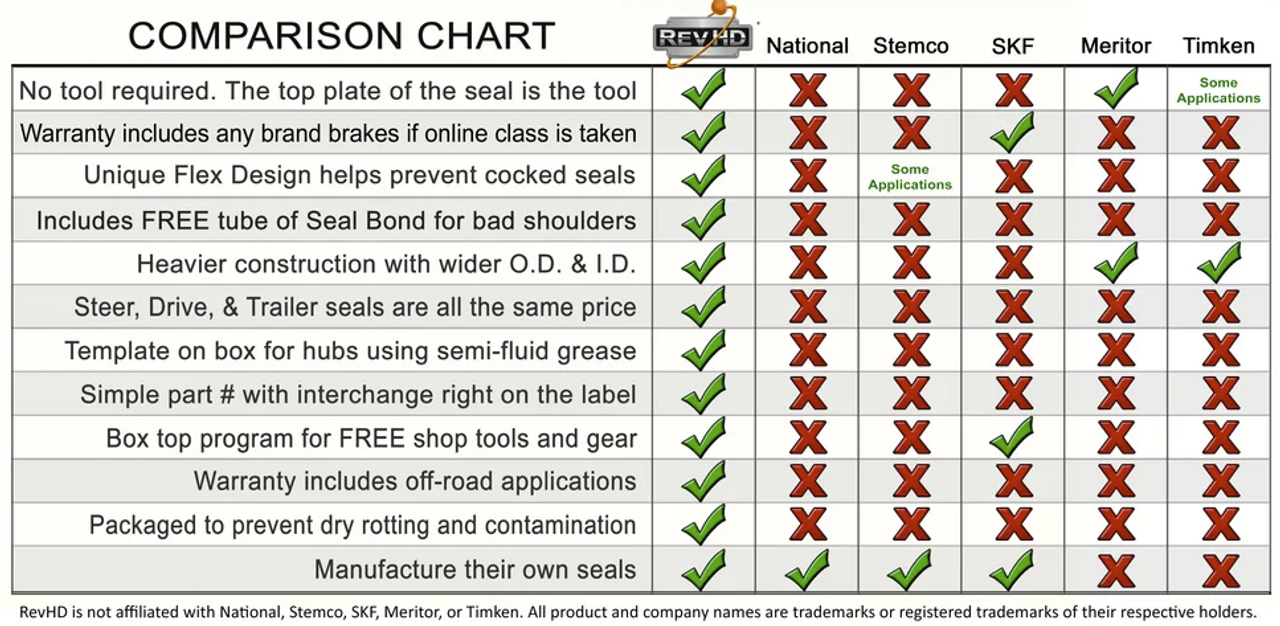

What Makes RevHD Different?
The Top of the Seal is the Tool
No need to worry if you have the right tool. No need to stock multiple tools. Use any flat object. Note: if using a seal installer, flip the plate over to the flat side.
Flex Seal™
Unique Flex Design helps prevent cocked seals during installing which is one of the primary sources of early seal failures on commercial vehicles.
The #1 leading cause of premature seal failure is a cocked seal. Often the seal is cocked while docking the hub. RevHD’s unique Flex design allows the i.d. of the seal to move with the hub while docking.
Wider is Better.
RevHD seals offer a wider O.D. and a wider I.D. providing more surface contact area for both the
hub bore and the spindle shoulder. In addition, our seals have more internal sealing points.
Free tube of Seal Extend in every box.
This proprietary formula causes the seal to swell after installation, and fill in any imperfections on the hub bore and spindle shoulder.
