Description
Product Overview
Automann's double convoluted air spring boasts the ability to maintain ride height and to maximize service life. The two bellow design is engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
Specific Features & Benefits
- High quality raw material and manufacturer expertise to guarantee long-lasting performance
- The double convoluted design of the air spring is ideal for handling load fluctuations
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil; lubricants; and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
| Applications | Ridewell |
| Type | Double Convoluted |
| Air Spring Brand | Automann Phoenix |
| Automann Bellows # | SP2B12R |
| Goodyear Bellows# | 578-92-3-211 |
| Contitech Bellows# | FD 200-19 |
| Load (Lbs) @80 PSI | 2560 |
| Load (Lbs) @100 PSI | 3200 |
| Natural Freq. (CPM) | 108 |

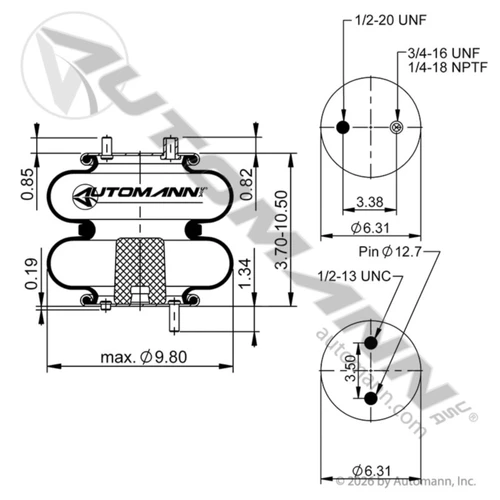

| Design Height (In) | 8.00 |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 6.31 |
| Top Plate C to C Dia. (B) | 3.38 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 6.31 |
| Bottom Plate C to C Dia. (D) | 3.50" |
| Bumper | Yes |
| Min. Height | 3.70 |
| Max. Height | 10.50 |
| Max. Dia. | 9.80 |
Cross References
| Contitech | 70659 |
| Contitech | FD 200-19 895 |
| Goodyear | 2B9-614 |
| Ridewell | 1002B09614G |
