Description
- Air Spring & Star Washer
- 3/4 inch - 16 Upper Mount Fitting
- 5900i, 7600, 8600
- LoneStar, ProStar, TranStar
Product Overview
Automann’s cabin air spring is responsible for seating the cabin to the chassis of the vehicle. Designed to offer suspension while driving and superior dampening to improve ride comfortability. Installing a cabin air spring can also help improve vehicle handling and operation. Engineered to meet OEM specification and committed to Keeping Trucks Moving™
Specific Features & Benefits
- High quality raw material and manufacturer expertise to guarantee long-lasting performance
- Maintains cabin height and stability while driving
- Improves safety and comfort while reducing fatigue for the driver
- Features OEM dimensioning for hassle-free assembly
- Manufactured to be environmentally friendly and longer lasting at an optimal weight

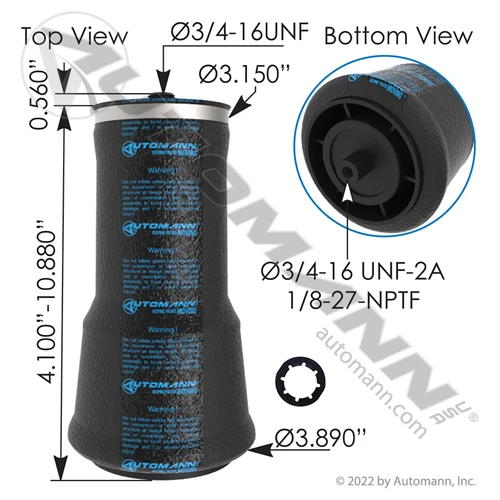

| Applications | International |
| Type | Sleeve Type |
| Air Spring Brand | Automann Phoenix |
| Top Plate Hole/Stud Qty | 1 |
| Top Plate Dia. (A) | 3.15 |
| Top Plate C to C Dia. (B) | N/A |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 3.89 |
| Bottom Plate C to C Dia. (D) | 2.25" |
| Bumper | No |
| Min. Height | 4.10 |
| Max. Height | 10.88 |
| Goodyear | 579-120-641-00064 |
| Goodyear | 1S6-641 |
| IHC | 2591909C1 |
| IHC | 2591909C2 |
| IHC | 2597239C1 |
| Link | 1101-0061 |
| Link | 1101A061 |
| Oshkosh | 90030880 |
