Description
- Meritor 15 in. and 16-1/2 in. Q and Q-Plus Type
- Narrow and wide groove lock ring compatibility
- Full kit, two wheel ends; rubber support gasket included
- Components Available Separately
Product Overview

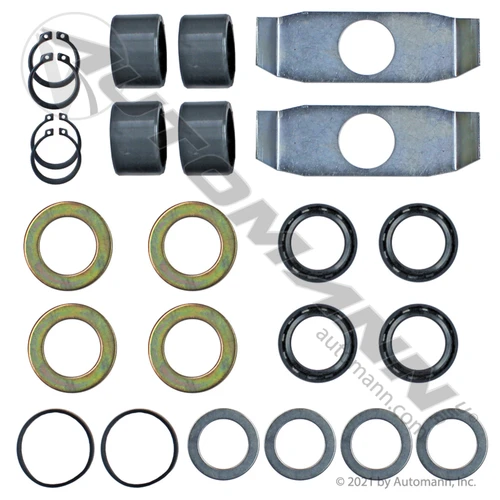

Automann's camshaft repair kit is engineered for Meritor Q and Q-Plus drive axles with 15 in. and 16-1/2 in. brake sizes. It contains all hardware to restore camshaft function across two wheel ends. Includes moly-impregnated Nylatron bushings, seals, lock rings for both groove types, and a rubber support gasket.
Specific Features & Benefits
- Meritor 15 in. and 16-1/2 in. Q and Q-Plus Type
- Moly-Impregnated Nylatron Bushings ( Self Lubricating Bushings ) reduce friction and wear for long-term camshaft support
- Services two s-cams - all components included in a single kit
- Components available separately - complete kit is required for proper repair
Specifications
| Applications | Meritor |
| Brake Size | 15" and 16-1/2" |
| Bushing Material (Spider Bushing) | Moly-Impregnated Nylatron |
| Bushing Material (Support Bushing) | Moly-Impregnated Nylatron |
| Spider Bushing Inner Diameter | 1.500" |
| Spider Bushing Outer Diameter | 1.875" |
| Support Bushing Inner Diameter | 1.500" |
| Support Bushing Outer Diameter | 1.875" |
Series
| Volvo/White | VNL 670 Gen 1 (1996-2003) | |
| Volvo/White | VNL 670 Gen 2 (2003-2019) |
Cross References
| Euclid | E-3993B |
| Haldex | CQ67387 |
| Leland | K81 |
| Leland | K278 |
| Leland | K367 |
| Meritor | KIT8042 |
| Spicer | 43-7048 |
