Description

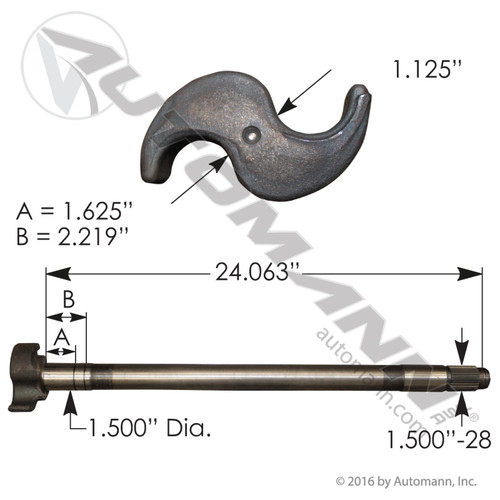

- Dana/Spicer and Std. Forge Axles with 16-1/2in Xtralife Brakes, 1.125in Head, 1.5in-28 Splines
- Use with 110.2302 Repair Kit
| Applications | Dana/Spicer |
| Head Style | Head Style 6 |
| Head Type | 1.125" Extended Life, Hendrickson HXS |
| Length (L) | 24.063" |
| Length (B) | 1.625" |
| Length (C) | 2.219" |
| Splines | 1.500"-28 |
| Journal Dia. (A) | 1.500" |
| Journal Dia. (B) | 1.500" |
| Hardware Kit(s) | 110.2302 |
Cross References
| Euclid | E9101 |
| Meritor | R607200 |
| Spicer | 17-514 |
| Spicer | M16WKR20-242 |
