Description

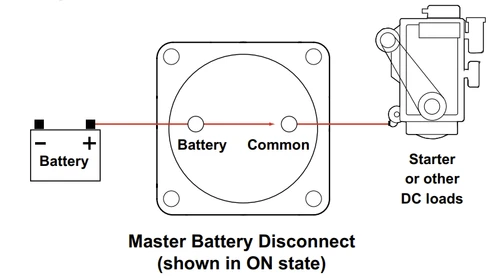

- Isolates batteries and stops battery drain when vehicle is stored. Also cuts power to battery for safety during vehicle maintenance.
- Ignition protected to SAE J1171 and ISO 8846 for installation in a battery box or on vehicles carrying hazardous loads.
- Available with integral holes to accept lockout/tagout. No need to purchase additional hardware.
- Corrosion-resistant plastic case ingress protected to IP67/IP69K dustproof and waterproof ratings

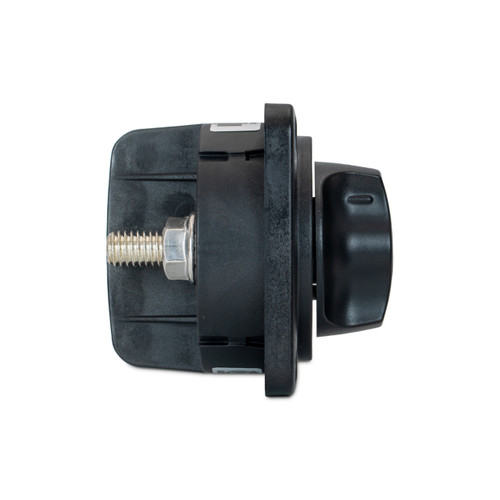

- Can be installed where behind-panel space is limited: Unit depth is 3” from knob front to end of studs.
- Stainless steel hardware and tin-plated copper contacts minimize resistance in harsh environments.
| Property | Value |
|---|---|
|
Current Rating (Continuous) in Amps
|
300
|
|
Maximum DC Voltage (V)
|
32
|
|
Circuitry
|
SPST
|
|
Ingress Protection
|
IP67, IP69K
|
|
Actuator
|
Plastic Knob
|
|
Contacts
|
Copper
|
|
Housing
|
Engineering Thermoplastic
|
|
Humidity
|
0 - 95% RH
|
|
Agency Approval - Shock
|
50 G
|
|
Agency Approval - Vibration
|
10 G
|
|
Terminal size
|
3/8-16 x 7/8 Long
|
