Description

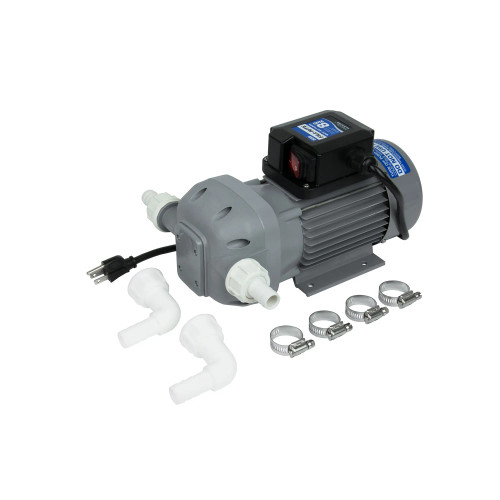

The DF012N model is a 12V DC DEF transfer pump. This model includes installation components but no additional accessories.
FEATURES
- Durable Construction – engineered with multi-diaphragm technology and EPDM seals, this pump excels in daily DEF transfer
- No Mess Performance – integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal
- No Crystallization – fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization
- Flexible Installation – convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
- Closed-Loop System – create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
SPECS
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | DEF, Water |
| Inlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Outlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Mounting Type | -- |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 6 ' |
| Max Operating Pressure (PSI) | 38 |
| Discharge Head (ft) | 87 ' |
| Max Current (A) | 22 A |
| Operating Temperature Range (°F) | -- |
| AC Frequency (Hz) | -- |
