Description

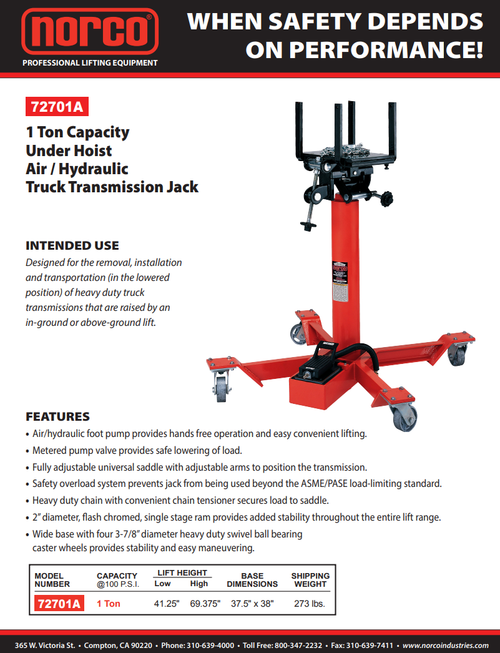

1 Ton Capacity Under Hoist
Air / Hydraulic Truck Transmission Jack
FREE COMMERCIAL SHIPPING!*
INTENDED USE:
Same as the model 72700A with the added convenience of an air/hydraulic foot pump.
FEATURES:
- Air/hydraulic foot pump provides hands free operation and easy convenient lifting.
- Metered pump valve provides safe lowering of load.
- Fully adjustable universal saddle with adjustable arms to position the transmission.
- Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
- Heavy duty chain with convenient chain tensioner secures load to saddle.
- 2” diameter, flash chromed, single stage ram provides added stability throughout the entire lift range.
- Wide base with four 3-7/8” diameter heavy duty swivel ball bearing caster wheels provides stability and easy maneuvering.
DIMENSIONS:
| Low Lift Height | 41.25" |
| High Lift Height | 69.375" |
| Base Dimensions | 37.5" x 38" |
| Shipping Weight | 273 lbs. |
*NOTE: This product will be shipped LTL Freight. Additional cost for delivery if it is residential or you don't have a forklift to remove the product from the delivery truck. If applicable please ensure that you select the options needed prior to pressing "add to cart". If an option is not selected and FedEx determines it is residential or that a liftgate is needed it will delay delivery.
Warranty Information
Manufacturer's Waranty
