Description
- Hub Pilot Mount for Dual Aluminum Wheels, Outboard Drum Mount
- Includes Outer Race 182.HM212011 and Inner Race 182.HM218210
- Includes 10-201.6157 Wheel Studs, 150.ABS1554 Tone Ring
- Applications: Dana/Spicer, Dexter, Eaton, Hendrickson, Ingersoll/IMT, Meritor, Standard Forge, Westport
Product Overview

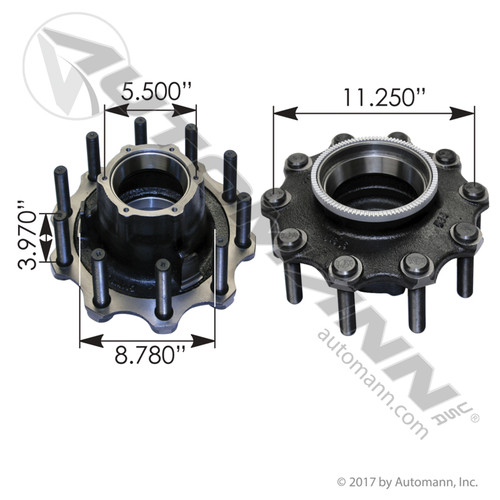

Automann's Outboard mount hub assembly for trailer axle applications with dual aluminum wheels on heavy-duty commercial vehicles. Hub-piloted design supports 10-stud mounting and integrates wheel bearing races and wheel studs for a complete wheel-end solution. The interchangeable design makes it compatible across several tapered spindle axle applications.
Specific Features & Benefits
- Hub Pilot, 10 Stud Mount Provides precise wheel centering and secure attachment for dual aluminum wheel configurations
- Includes Inner and Outer Bearing Races Reduces assembly time with pre fitted wheel bearing cups
- Includes 10 Wheel Studs Complete hub assembly ready for direct installation double check wording, it is confusing
- ABS Compatible Supports anti lock braking system integration on equipped trailer axles
- Cast Body Construction Delivers strength and durability for heavy duty fleet trailer applications
Notes
: Commonly Used Brake Drums 151.58601BA, 151.58602, 151.6700BA, 151.6801, 151.68607
| Applications | Dana/Spicer Dexter Eaton Hendrickson Ingersoll/IMT Meritor Standard Forge Westport |
| Hubs By | Trailer Axle |
| Includes Inner Race | 182.HM218210 |
| Includes Outer Race | 182.HM212011 |
| Drum Mounting | Outboard |
| ABS | Yes, 150.ABS1554 |
| Body Type | Cast |
| Distance Between Cups | 3.340 |
| Bolt Circle Dia. | 11.250 |
| Pilot | 8.780" |
| Bolt Holes | 10 |
| Includes Wheel Studs | 201.6157 |
| Recommended Wheel Studs | Included |
| Hubcap Holes | 6 @ 5/16-18 |
| Hubcap Bolt Circle Dia. | 5.500" |
Cross References
| Conmet | 10026185 |
| Gunite | HT794RD |
| Meritor | 0415984004 |
| Webb | 20231-5T |
