Description

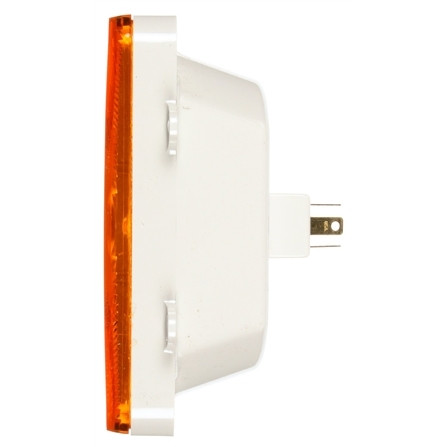

Truck-Lite, Incandescent, 4"x6", Rectangular, Yellow, 1 Diode, Yellow, 4 Screw Mount, Front/Park/Turn
Watertight lamp mates withPackard connector

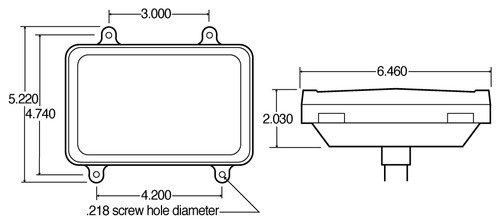

Recess mounts using two screws at 30" centers and two screws at 42" centers
12V lamps mate with PE Connector 62884715
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Color | Yellow |
| Lens Shape | Rectangular |
| Lens Material | Polycarbonate |
| Lens Height_INH | 4.75 in |
| Lens Width_INH | 6.46 in |
| Common Size | 4"x6" |
| Total Height In INH | 5.22 |
| Total Width In INH | 6.46 |
| Total Depth In INH | 2.03 |
| Total Height In MMT | 132.59 mm |
| Total Width In MMT | 164.08 |
| Total Depth In MMT | 51.56 |
| Weight In LB | 25 |
| Mount/Trim Color | Yellow |
| Mount Type | 4 Screw Mount |
| Mount/Trim Material | Polycarbonate |
| Housing Material | Polycarbonate |
| Lamp Connection | Packard Connector 6288471 |
| Plug Side One | U1672Packard Connector 6288471 |
| Number of Wires | 3 |
| Voltage (VLT) | 12 |
| Current Minor | 0.48 |
| Compliance Family | FMVSS 108 |
| Compliance Family | CMVSS 108 |
| Compliance Family | DOT |
| Compliance Family | SAE |
| Standards Met | I6 |
| Standards Met | P |
| Standards Met | P2 |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Signal Lighting |
| Series | Truck-Lite |
