Description

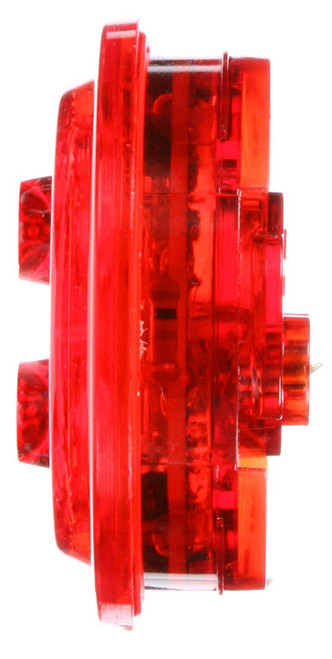

30 Series, LED, 2", Round, Red, 6 Diode, Grommet Mount, P2
PC, Marker & Clearance Light
SAE PC Rated, allowing combined marker & clearance applications
Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2" Marker & Clearance light on the market.
Designed with LED lighting technology protecting against damage from shock and vibration.
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 6 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Height_INH | 2.25 in |
| Lens Width_INH | 2.25 in |
| Common Size | 2" |

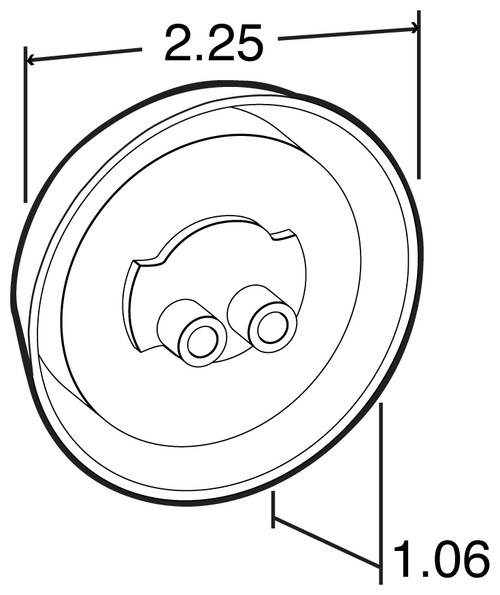

| Total Height In INH | 2.25 |
| Total Width In INH | 2.25 |
| Total Depth In INH | 1.06 |
| Total Height In MMT | 57.15 mm |
| Total Depth In MMT | 26.92 |
| Total Width In MMT | 57.15 |
| Weight In LB | 0.2 |
| Mount Type | Grommet Mount |
| Housing Material | Polycarbonate |
| Lamp Connection | PL-10 |
| Plug Side One | PL-10 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 30 Series |
