Description

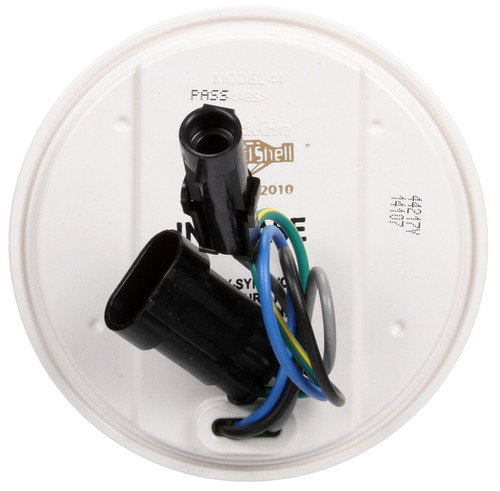

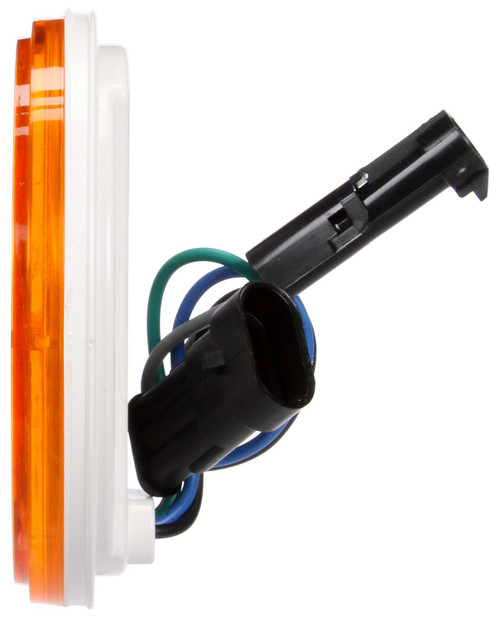

Super 44, LED, 4", Round, Yellow, 6 Diode, White, Grommet Mount, Packard Connector 282087
Weather Connector 12015791, J845
J1395
J1455, Warning Light
New Super 44 Series Rear Turn Strobe lamp provides a quad flash pattern with solid state LED technology
Turn signal override feature momentarily overrides strobe function allowing lamps to signal for turn functions
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 6 |
| Lens Color | Yellow |
| Lens Shape | Round |
| Lens Material | Acrylic |
| Lens Height_INH | 4 in |
| Lens Width_INH | 4 in |
| Common Size | 4" |
| Total Height In INH | 4.31 |
| Total Width In INH | 4.31 |
| Total Depth In INH | 0.99 |
| Total Height In MMT | 109.47 mm |
| Total Width In MMT | 109.47 |
| Total Depth In MMT | 25.15 |
| Weight In LB | 0.79 |
| Mount Type | Grommet Mount |
| Mount/Trim Color | White |
| Mount/Trim Material | Polycarbonate |
| Housing Material | ABS |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Packard Connector 282087 |
| Plug Side Two | Weather Connector 12015791 |
| Number of Wires | 4 |
| Voltage (VLT) | 12 |
| Current_AMP | 0.7 |
| Compliance Family | FMVSS 108 |
| Compliance Family | CMVSS 108 |
| Compliance Family | DOT |
| Compliance Family | SAE |
| Standards Met | J845 |
| Standards Met | J1395 |
| Standards Met | J1455 |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Warning & Emergency Lighting |
| Series | Super 44 |
