Description

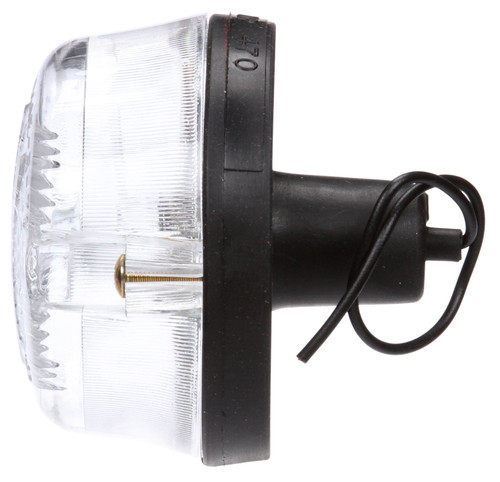

80 Series, Incandescent, 4", Round, Clear, 1 Diode, Black, Bracket Mount , Blunt Cut, Back Up Light
Features rubber body which helps absorb shock and vibration
Can be used as back-up or utility lamp
Requires two lamps to meet federal lighting regulations as a back-up lamp
Not recommended for dome lamp use
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Color | Clear |
| Lens Shape | Round |
| Lens Material | Acrylic |

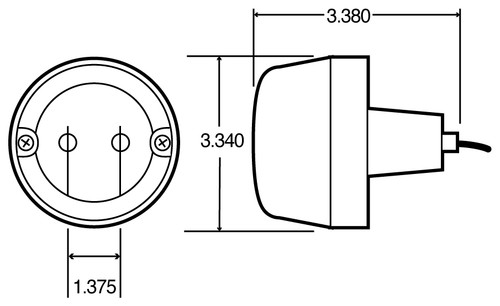

| Lens Height_INH | 3.34 in |
| Lens Width_INH | 3.34 in |
| Common Size | 4" |
| Total Height In INH | 5.28 |
| Total Width In INH | 5.28 |
| Total Depth In INH | 3.38 |
| Total Height In MMT | 134.11 mm |
| Total Width In MMT | 134.11 |
| Total Depth In MMT | 85.85 |
| Weight In LB | 0.18 |
| Mount Type | Bracket Mount |
| Mount/Trim Color | Black |
| Mount/Trim Material | Rubber |
| Housing Material | Rubber |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Blunt Cut |
| Number of Wires | 1 |
| Voltage (VLT) | 12 |
| Current_AMP | 2.1 |
| Compliance Family | FMVSS 108 |
| Compliance Family | CMVSS 108 |
| Compliance Family | DOT |
| Compliance Family | SAE |
| Standards Met | R |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| KIT | Kit (Yes/No) |
| Product Group | Back Up & License Lighting |
| Series | 80 Series |
