Description

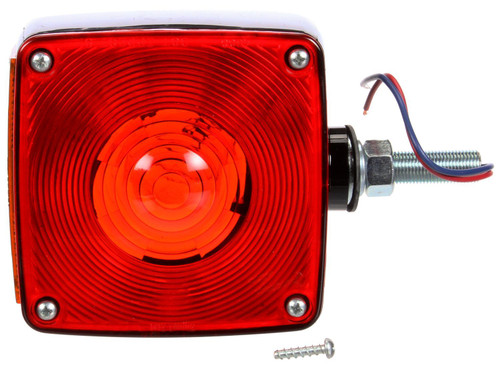

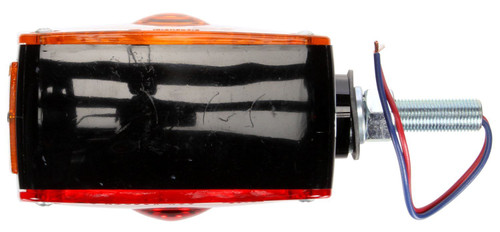

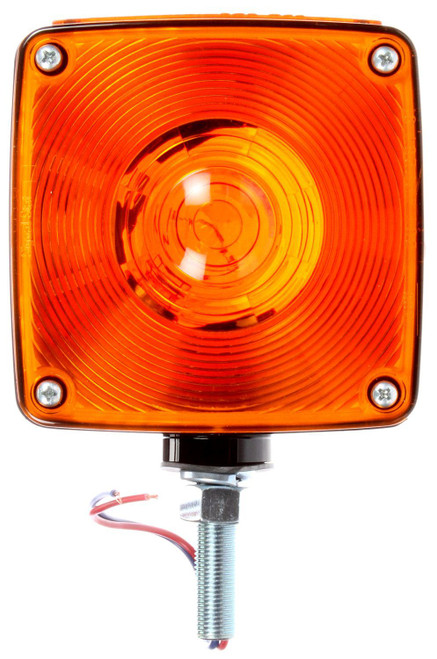

Signal-Stat, Incandescent, 4"x4", Square, Red
Yellow, 2 Diode, 1 Stud Mount, Stripped End, Pedestal Light
GM # 677914
High-impact non-corrosive polycarbonate housing
Side marker and reflector included in design
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 2 |
| Lens Color | Red |
| Lens Color | Yellow |
| Lens Shape | Square |
| Lens Material | Acrylic |
| Lens Height_INH | 4.63 in |
| Lens Width_INH | 4.63 in |
| Common Size | 4"x4" |
| Total Height In INH | 4.64 |
| Total Width In INH | 4.63 |
| Total Depth In INH | 3.12 |
| Total Height In MMT | 117.86 mm |
| Total Width In MMT | 117.6 |
| Total Depth In MMT | 79.25 |
| Weight In LB | 1.16 |
| Mount Type | 1 Stud Mount |
| Housing Material | Polycarbonate |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Current Minor | 0.5 |
| Standards Met | I6 |
| Standards Met | A |
| Position | Universal |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Product Group | Turn Signal Light |
| Series | Signal-Stat |
