Description

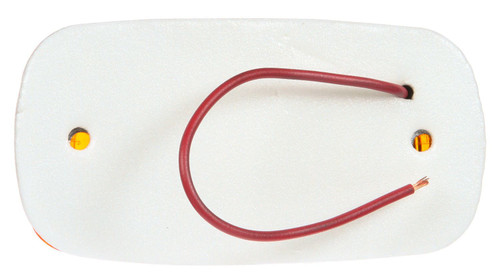

Signal-Stat, Incandescent, 2"x4", Rectangular, Yellow, 2 Diode, Bracket Mount , Blunt Cut, Marker & Clearance Light
Die cast base with heavy mounting pad
Shock/Mount for maximum bulb life
Rubber O-ring secures Snap-On lens
Two bulb design-if one burns out, the other remains lighted
Lamp meets requirements with only one bulb
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 2 |
| Lens Shape | Rectangular |
| Lens Material | Acrylic |
| Lens Height_INH | 2 in |
| Lens Width_INH | 4 in |

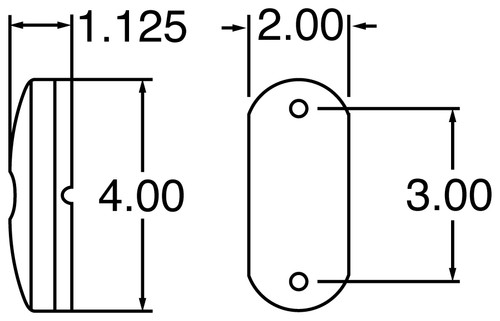

| Common Size | 2"x4" |
| Total Height In INH | 2 |
| Total Width In INH | 4 |
| Total Depth In INH | 1.13 |
| Total Height In MMT | 50.8 mm |
| Total Depth In MMT | 28.57 |
| Total Width In MMT | 101.6 |
| Weight In LB | 0.46 |
| Mount Type | Bracket Mount |
| Housing Material | Die Cast Zinc |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Blunt Cut |
| Number of Wires | 1 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Product Group | Marker & Clearance Lighting |
| Series | Signal-Stat |
