Description

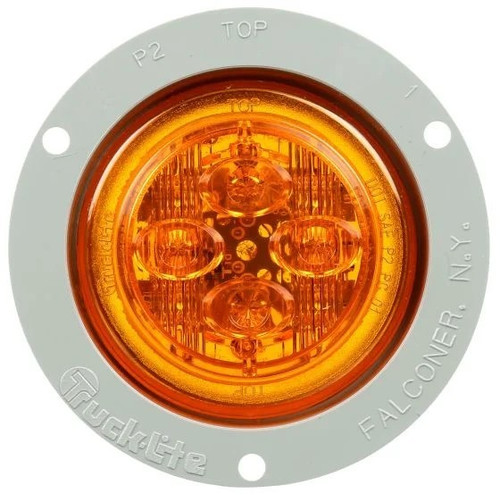

Our original 10 Series LED Marker & Clearance light is our most advanced and cost effective 2.5" marker & clearance lamp available, designed with a low-profile design, sealed electronics, and LED technology.
P2/P3 Rated marker & clearance lamps are compliant for 90 degree
Low-profile design to reduce damage from being hit or knocked off.
Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 2 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Height_INH | 2.54 in |
| Lens Width_INH | 2.54 in |
| Common Size | 2.5" |
| Total Height In INH | 3.5 |
| Total Width In INH | 3.5 |
| Total Depth In INH | 1.4 |
| Total Height In MMT | 88.9 mm |
| Total Depth In MMT | 35.56 |
| Total Width In MMT | 88.9 |
| Weight In LB | 0.18 |
| Mount Type | Flange Mount |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Housing Material | Polycarbonate |
| Lamp Connection | Fit 'N Forget M/C |
| Plug Side One | Fit 'N Forget M/C |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Function | Low-Profile |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 10 Series |
