Description

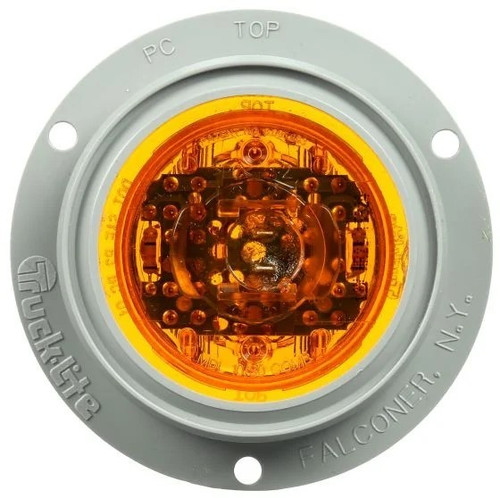

Our popular 10 Series Marker & Clearance lamp upgraded meet a PC rating. A PC rated legal lamp allows for one lamp instead of two to meet the 180 degrees
SAE PC Rated, allowing combined marker & clearance applications
Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
Designed with LED lighting technology protecting against damage from shock and vibration.
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 8 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Height_INH | 2.8 in |
| Lens Width_INH | 2.8 in |
| Common Size | 2.5" |

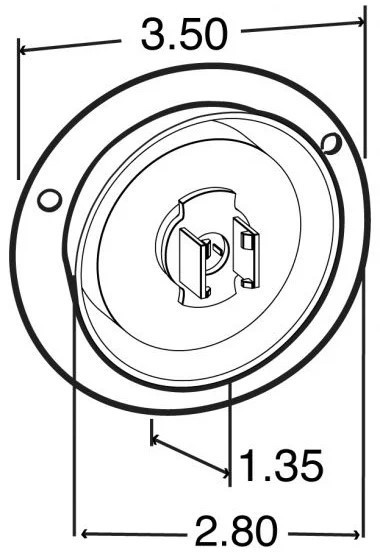

| Total Height In INH | 3.5 |
| Total Width In INH | 3.5 |
| Total Depth In INH | 1.35 |
| Total Height In MMT | 88.9 mm |
| Total Depth In MMT | 34.29 |
| Total Width In MMT | 88.9 |
| Weight In LB | 0.4 |
| Mount Type | Flush Mount |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Housing Material | Polycarbonate |
| Lamp Connection | Fit 'N Forget M/C |
| Plug Side One | Fit 'N Forget M/C |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 10 Series |
