Description

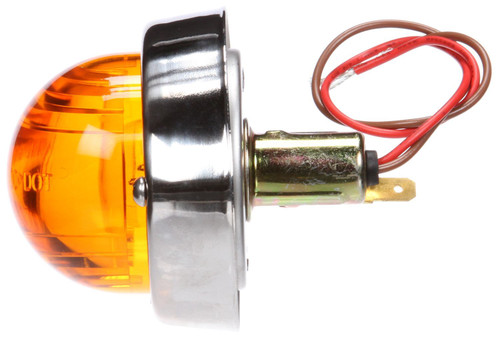

26 Series, Incandescent, 2", Round, Yellow, 1 Diode, Silver, 2 Screw Mount, Stripped End, Marker & Clearance Light
Popular in bus applications
Provide marker and auxiliary side turn indicator functions
Features stainless steel and 2 holes for #10 screws on 1625'' centers
Clearance hole of 812 diameter required
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Shape | Round |
| Lens Material | Acrylic |
| Lens Height_INH | 0 in |
| Lens Width_INH | 0 in |
| Common Size | 2" |
| Total Height In INH | 3.28 |
| Total Width In INH | 4.03 |
| Total Depth In INH | 2.97 |
| Total Height In MMT | 83.31 mm |
| Total Depth In MMT | 75.44 |
| Total Width In MMT | 102.36 |
| Weight In LB | 0.41 |
| Mount Type | 2 Screw Mount |
| Mount/Trim Color | Silver |
| Housing Material | Stainless Steel |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Product Group | Marker & Clearance Lighting |
| Series | 26 Series |
