Description

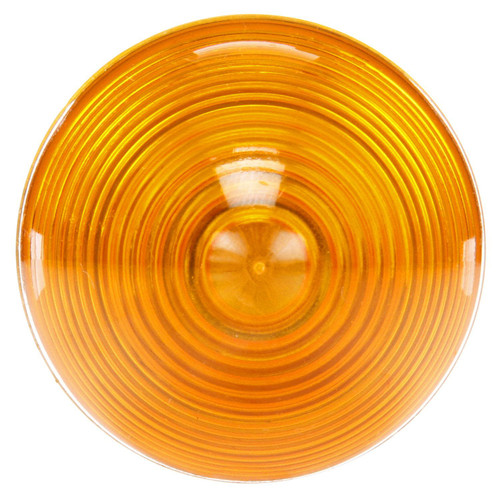

30 Series, Incandescent, 2", Beehive, Yellow, 1 Diode, Grommet Mount, Marker & Clearance Light
Features a beehive lens designed for cab marker use
Lens and housing are sonically sealed
High-impact polycarbonate construction
12V, 15,000-hour-rated bulb
Suitable for PC requirements on a 45-degree angle
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Shape | Beehive |
| Lens Material | Polycarbonate |
| Lens Height_INH | 2.01 in |
| Lens Width_INH | 2.01 in |
| Common Size | 2" |
| Total Height In INH | 2.01 |
| Total Width In INH | 2.01 |
| Total Depth In INH | 1.74 |
| Total Height In MMT | 51.05 mm |
| Total Depth In MMT | 44.2 |
| Total Width In MMT | 51.05 |
| Weight In LB | 0.09 |
| Mount Type | Grommet Mount |
| Housing Material | Polycarbonate |
| Lamp Connection | PL-10 |
| Plug Side One | PL-10 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 30 Series |
