Description

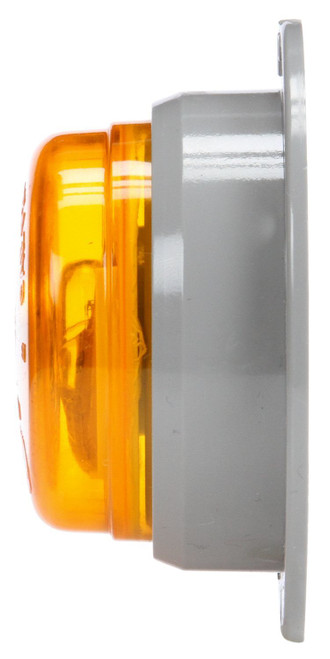

30 Series, Incandescent, 2", Round, Yellow, 1 Diode, Gray, Flange Mount, Marker & Clearance Light
Flanges are permanently affixed to lamp
12V, 15,000-hour-rated bulb
Flush mount is not suitable for PC requirements
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Height_INH | 2 in |
| Lens Width_INH | 2 in |
| Common Size | 2" |
| Total Height In INH | 2.93 |
| Total Width In INH | 2.93 |
| Total Depth In INH | 1.26 |
| Total Height In MMT | 74.42 mm |
| Total Depth In MMT | 32 |
| Total Width In MMT | 74.42 |
| Weight In LB | 9 |
| Mount Type | Flange Mount |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Housing Material | Polycarbonate |

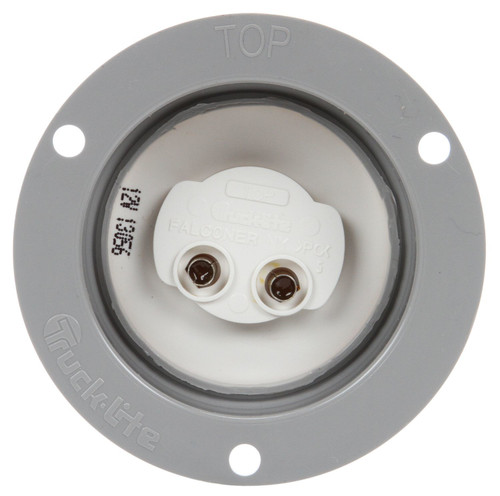

| Lamp Connection | PL-10 |
| Plug Side One | PL-10 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 30 Series |
